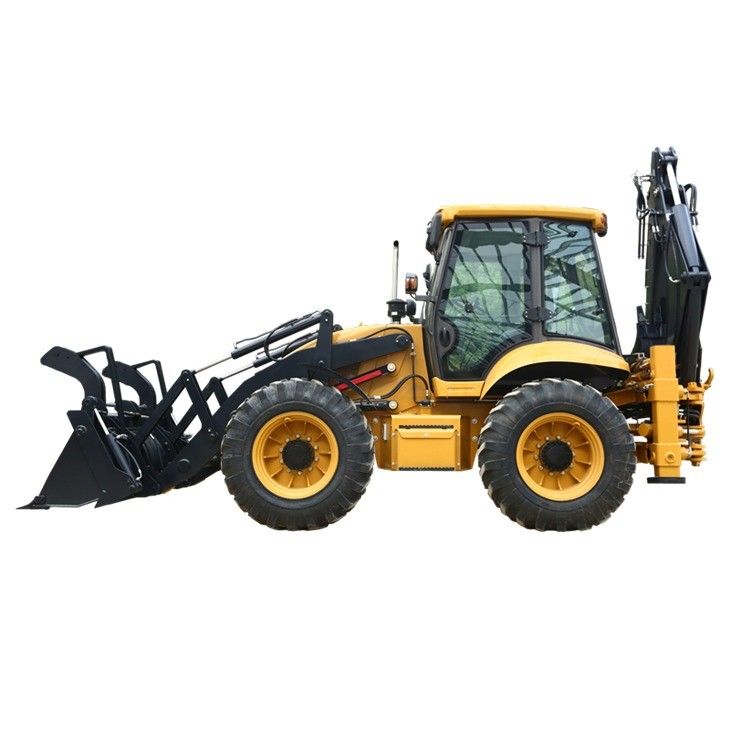

The 388H backhoe loader belongs to the latest generation of Shanmon backhoe loaders, which is developed for the Russian market with a number of innovations. It is a user-friendly machine that offers top class performance. For now, Shanmon produces more than 1000 units backhoes every month, they are hot for sale.
| Overall dimension | Operating Weight | 10500KG |
| Overall dimension(L×W×H) | 6450×2530×3120mm | |
| Wheel base | 2335mm | |
| Wheel tread | 2050mm | |
| Ground Clearance | 450mm | |
|
Performance |
Loader bucket capacity |
1.2m³ |
|
Loader breakout force |
47KN |
|
|
Loader lifting capacity |
2500KG |
|
|
Loader dumping height |
3050mm |
|
|
Loader dumping reach |
870mm |
|
|
Loader digging depth |
52mm |
|
|
Backhoe bucket capacity |
0.3m³ |
|
|
Backhoe bucket digging force |
50KN |
|
|
Backhoe swing angle |
180° |
|
|
Backhoe dumping height |
4050mm |
|
|
Backhoe max digging depth |
3820mm |
|
|
Max. traction force |
86KN |
|
|
Engine |
Model |
Yuchai YC4A105Z-T20 |
|
Type |
Turbocharging four-stroke |
|
|
Cylinder-inner diameter*stroke |
4-108×132 |
|
|
Rated power |
75KW/100HP |
|
|
Rated speed |
2200r/min |
|
|
Min. Fuel consumption |
230g/kw.h |
|
|
Max.torque |
400N.m |
|
|
Displacement |
4.8L |
|
| Steering system | Type | Hydraulic Steering |
| Diverter model | BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±35° | |
| Min. turning radius | 6950mm | |
| Driving axle | Model | WZL100DF |
| Manufacturer | China axle | |
| Max. load of front axle | 13 ton | |
| Max. load of rear axle | 13 ton | |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchrinized Shift |
| Model | ZL30 | |
| Gears | 4 forward and 4 reverse gears | |
| Hydraulic torque converter | YJ320 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.6-1.9Mpa | |
| Cooling mode | oil-cooling presssure circulation | |
| Pump delivery | 40ml/r | |
|
Wheel |
Front wheel size |
16.9-28 |
|
Rear wheel size |
16.9-28 |
|
|
Front tire pressure |
0.35Mpa |
|
|
Rear tire pressure |
0.35Mpa |
|
|
Travel speed |
38Km/h |
|
| Brake system | Service brake | Gas pushed oil, built-in-selfregulation, self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 20Mpa |
| Digging hydraulic system | 20Mpa | |
|
Steering hydraulic system |
14Mpa |
