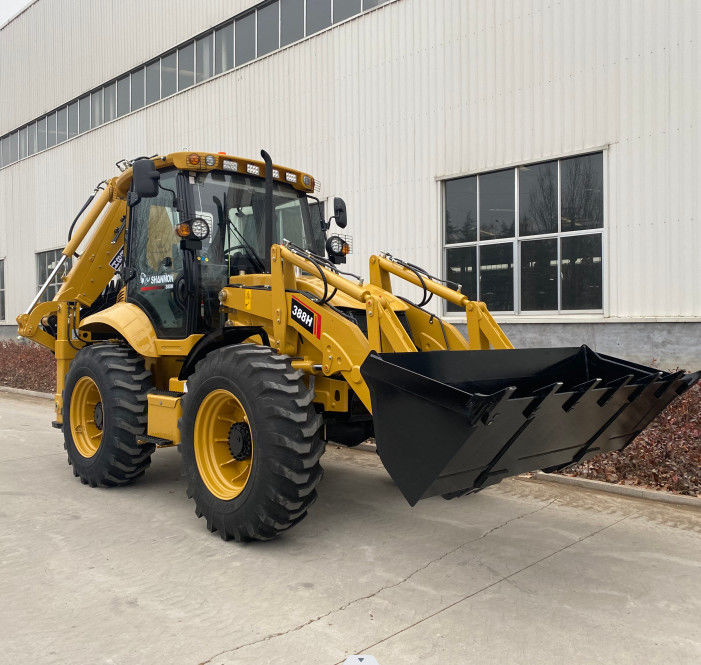

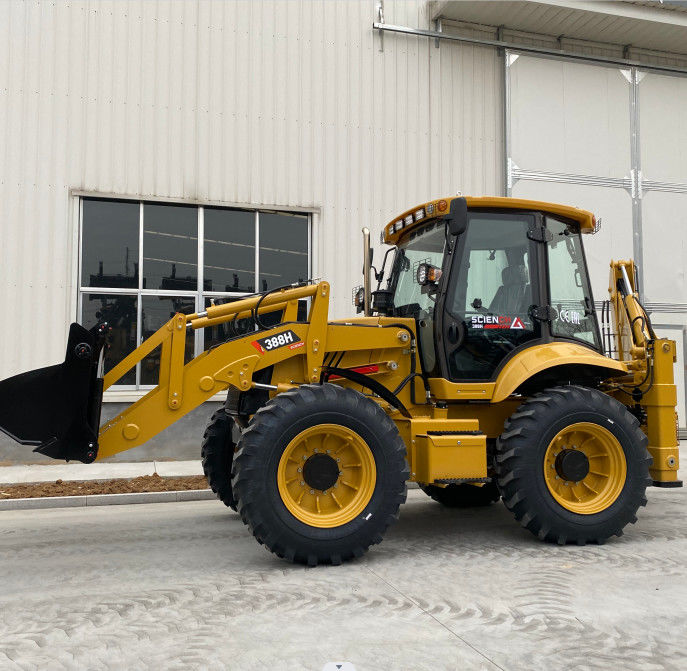

Factory Direct Backhoe Loader 388H belongs to the latest generation of Shanmon backhoe loaders, which is developed for the Russian market with a number of innovations. The reinforced overall frame and powerful Yuchai diesel engine increased breakout force and lifting capacities, while four-wheel steering mode and Shanmon heavy duty axles makes 388H more sturdy and flexible. 388H has been developed with constant attention to the needs of customers from all over the world, it provides reliability, power and a top-quality operator environment to see you through the toughest projects. Whether you’re loading trucks, busting up blacktop, placing pipe, digging trenches, or moving materials, 388H Backhoe loader is more than up to the task. Here is the specification:
| Overall dimension | Operating Weight | 10500KG |
| Overall dimension(L×W×H) | 6450×2530×3120mm | |
| Wheel base | 2335mm | |
| Wheel tread | 2050mm | |
| Ground Clearance | 450mm | |
| Performance | Loader bucket capacity | 1.2m³ |
| Loader breakout force | 47KN | |
| Loader lifting capacity | 2500KG | |
| Loader dumping height | 3050mm | |
| Loader dumping reach | 870mm | |
| Loader digging depth | 52mm | |
| Backhoe bucket capacity | 0.3m³ | |
| Backhoe bucket digging force | 50KN | |
| Backhoe swing angle | 180° | |
| Backhoe dumping height | 4050mm | |
| Backhoe max digging depth | 3820mm | |
| Max. traction force | 86KN | |
| Engine | Model | Yuchai YC4A105Z-T20 |
| Type | Turbocharging four-stroke | |
| Cylinder-inner diameter*stroke | 4-108×132 | |
| Rated power | 75KW/100HP | |
| Rated speed | 2200r/min | |
| Min. Fuel consumption | 230g/kw.h | |
| Max.torque | 400N.m | |
| Displacement | 4.8L | |
| Steering system | Type | Hydraulic Steering |
| Diverter model | BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±35° | |
| Min. turning radius | 6950mm | |
| Driving axle | Model | WZL100DF |
| Manufacturer | China axle | |
| Max. load of front axle | 13 ton | |
| Max. load of rear axle | 13 ton | |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchrinized Shift |
| Model | ZL30 | |
| Gears | 4 forward and 4 reverse gears | |
| Hydraulic torque converter | YJ320 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.6-1.9Mpa | |
| Cooling mode | oil-cooling presssure circulation | |
| Pump delivery | 40ml/r | |
| Wheel | Front wheel size | 16.9-28 |
| Rear wheel size | 16.9-28 | |
| Front tire pressure | 0.35Mpa | |
| Rear tire pressure | 0.35Mpa | |
| Travel speed | 38Km/h | |
| Brake system | Service brake | Gas pushed oil, built-in-selfregulation, self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 20Mpa |
| Digging hydraulic system | 20Mpa | |
| Steering hydraulic system |
14Mpa |
