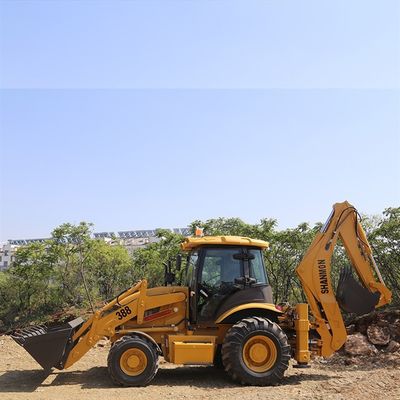

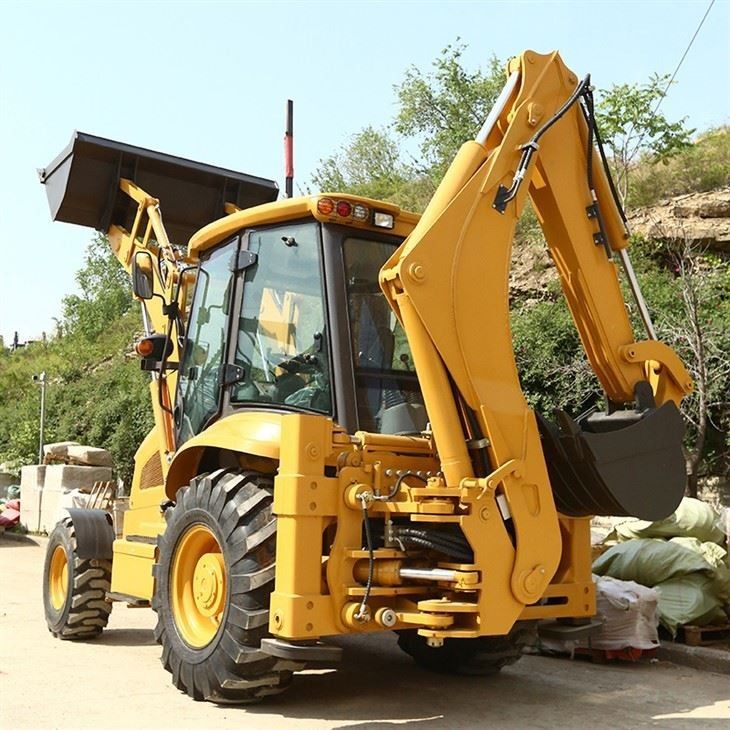

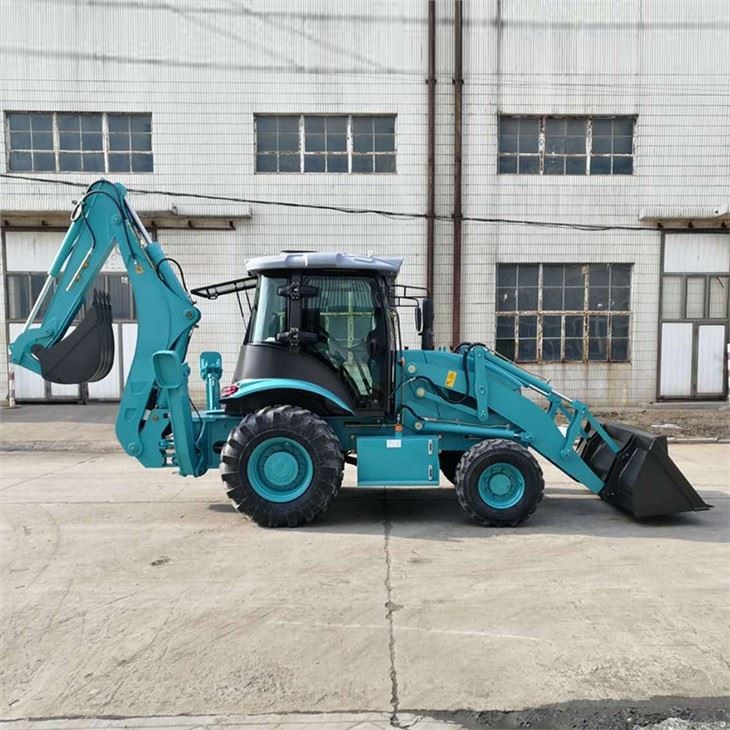

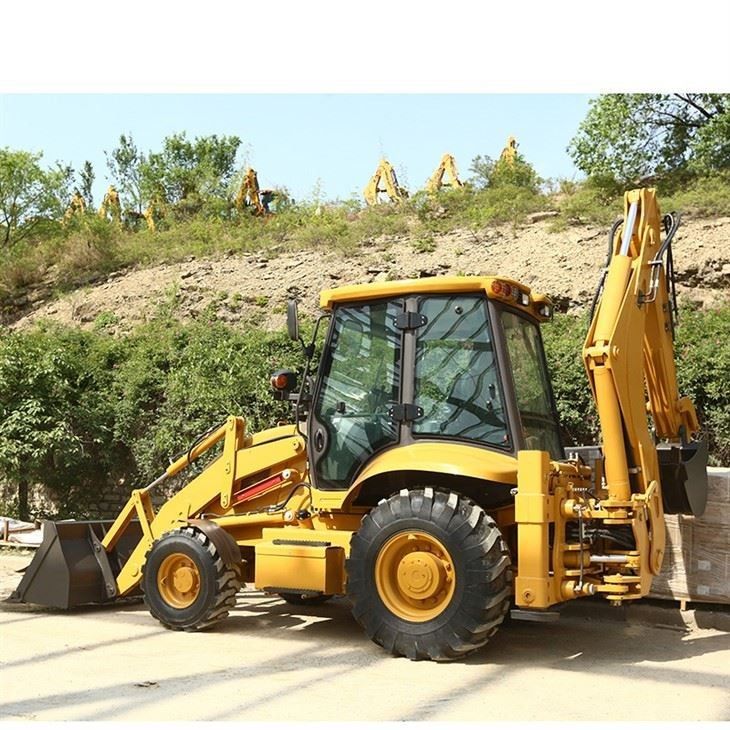

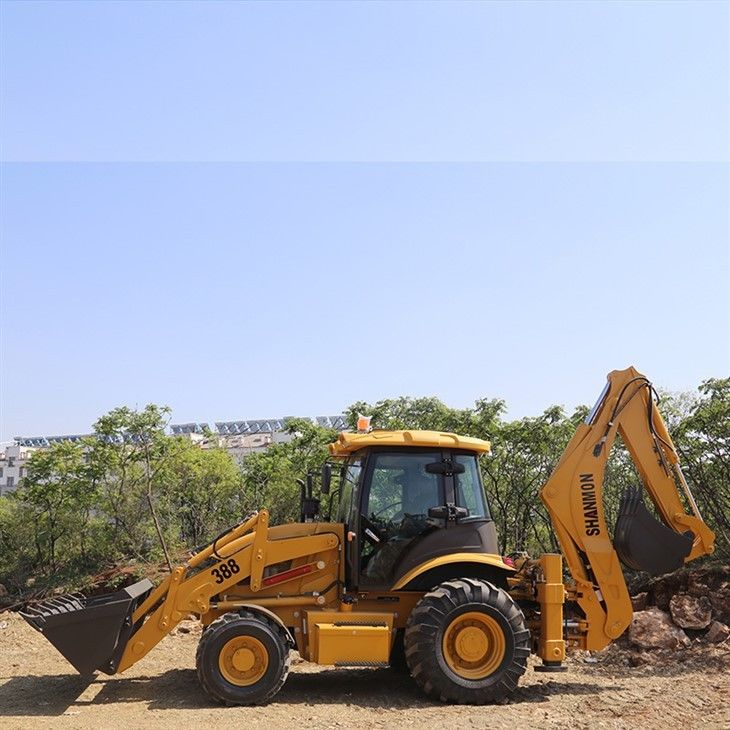

4×4 compact loader backhoe is designed for home improvement,building or landscaping project,forestry and so on.As we all know,the front of our 4×4 compact loader backhoe is a 1.0m³loading bucket with 2500KG lifting capacity and the rear is a 0.3m³bucket but it can be changed to other attachments.The rear bucket can be changed into auger,consisting of a rotating metal shaft with a blade.The 4×4 compact loader backhoe with auger is mostly used in forestry because it can dig multiple holes in the ground to plant trees.Our 4×4 compact loader backhoe also can be equipped with different sizes of auger based on our clients’ needs.Here is the specification:
| Overall dimension | Operating Weight | 8200KG |
| Overall dimension(L×W×H) | 6050×2465×3100mm | |
| Wheel base | 2280mm | |
| Wheel tread | 1785mm | |
| Ground Clearance | 300mm | |
|
Performance |
Loader bucket capacity |
1.0m³ |
|
Loader breakout force |
47KN |
|
|
Loader lifting capacity |
2500KG |
|
|
Loader dumping height |
2760mm |
|
|
Loader dumping reach |
900mm |
|
|
Loader digging depth |
52mm |
|
|
Backhoe bucket capacity |
0.3m³ |
|
|
Backhoe bucket digging force |
50KN |
|
|
Backhoe swing angle |
180° |
|
|
Backhoe dumping height |
3795mm |
|
|
Backhoe max digging depth |
4085mm |
|
|
Max. traction force |
60KN |
|
|
Engine |
Model |
Yuchai YC4A105Z-T20 |
|
Type |
Turbocharging four-stroke |
|
|
Cylinder-inner diameter*stroke |
4-108×132 |
|
|
Rated power |
75KW/100HP |
|
|
Rated speed |
2200r/min |
|
|
Min. Fuel consumption |
230g/kw.h |
|
|
Max.torque |
400N.m |
|
|
Displacement |
4.8L |
|
| Steering system | Type | Hydraulic Steering |
| Diverter model | BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±36° | |
| Min. turning radius | 6581mm | |
| Driving axle | Model | WZZ75D |
| Manufacturer | China axle | |
| Max. load of front axle | 22.5 ton | |
| Max. load of rear axle | 18.5 ton | |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchrinized Shift |
| Model | ZL15 | |
| Gears | 2 forward and 2 reverse gears | |
| Hydraulic torque converter | YJ290 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.5-1.8Mpa | |
| Cooling mode | oil-cooling presssure circulation | |
| Pump delivery | 40ml/r | |
|
Wheel |
Front wheel size |
14-17.5 |
|
Rear wheel size |
19.5L-24 |
|
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
|
|
Travel speed |
24Km/h |
|
| Brake system | Service brake | Air over oil caliper, external, self-regulation, self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 19Mpa |
| Digging hydraulic system | 19Mpa | |
|
Steering hydraulic system |
14Mpa |
