1 Ton Small Excavator High Efficiency Equipped With Engine EPA Certificated
Send Message
products

1 Ton Small Excavator High Efficiency Equipped With Engine EPA Certificated

Basic Information
Place of Origin: Shandong, China
Certification: ISO9001,CE,EAC
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: standard packaging
Delivery Time: 5-8 day
Payment Terms: negotiate
Detail Information
Moving Type: Crawler Excavator Feature: Easy Operation
Excavator: Mini Condition: Excellent Condition
Usage: Building Construction Keywords: High Efficiency

Product Description

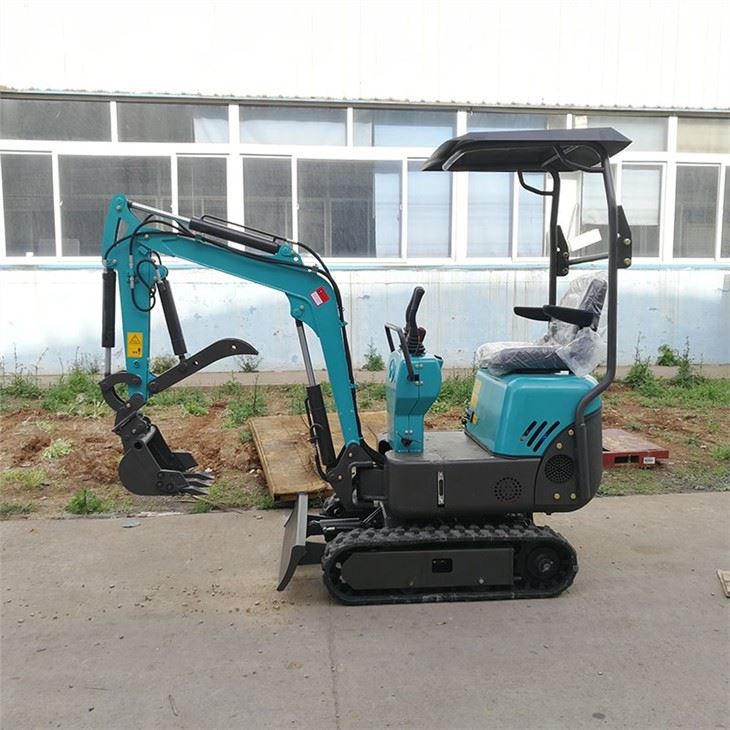

1 ton small excavator can be used on many projects,such as planting trees,property improvement and landscape projects.The 1 ton small excavator is equipped with KOOP engine which the emission standard is Tier 5 or Euro 5 and it is also can equipped with engine that is certificated by EPA.The enhanced whole frame improves the safety,reliability and productivity of our small excavator.The compact structure enables it to work in small spaces.The joysticks are designed on a operation panel so the operator can be easily to reach all the joysticks and there are only several joysticks so the operator can be able to learn how to operate it quickly.Here is the specification.



Mani specification

Operating weight

910KG

Bucket capacity

0.025cbm

Digging bucket width

400mm

Engine model

KOOP KD192F-1

Rated power

7.0/3000

Hydraulic pump model

China brand

Max. Flow

18L/min

Working pressure

17Mpa

Fuel tank capacity

8L

Hydraulic oil tank capacity

15L

Engine oil tank capacity(full/effective)

1.65/0.6L

Travel speed

2km/h

Max. Climbing degree

58%

Arm digging force

5.0KN

Bucket digging force

9.5KN

Electric pressure

12V

A-overall length

2960mm

B-overall width

930mm

C-overall height(to top of the boom)

1110mm

D-overall height(to top of the cabin)

2215mm

E-counterweight ground clearance

379mm

F-Min.ground clearance

134mm

G-tail swing radius

833mm

H-track ground length

900mm

J-track length

1233mm

K-track gauge

740mm
