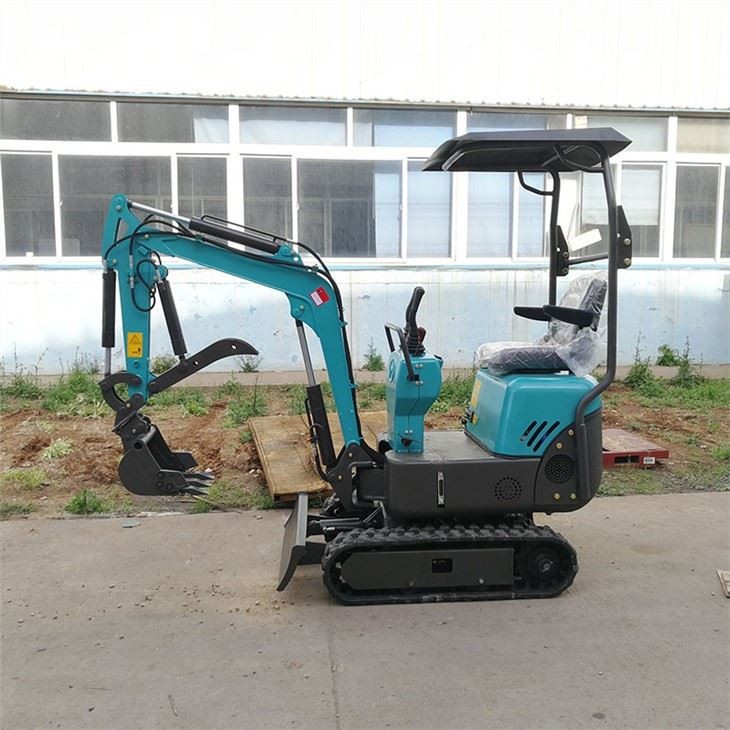

Compact Mini Excavator Equipped With Tilting Bucket High Efficiency

Basic Information
Place of Origin: Shandong, China
Certification: ISO9001,CE,EAC
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: standard packaging
Delivery Time: 5-8 day
Payment Terms: negotiate
Detail Information
Moving Type: Crawler Excavator Feature: Easy Operation
Excavator: Mini Condition: Excellent Condition
Usage: Building Construction Keywords: High Efficiency

Product Description

Compact mini excavator is designed for many small projects such as planting trees,property improvement and landscape projects.This machine can be used in family’s gardens.The whole mini excavator is made of enhanced steel so the frame is stronger and lighter than machines of other brands.In order to meet different needs of our clients,our compact mini excavator can be equipped with tilting bucket.The specification of tilting bucket is 800mm.If the compact mini excavator is equipped with tilting bucket,the operator can use it to accomplish precise operations that cannot be completed by standard bucket.And also the operator can operate the tilting bucket hydraulically.Here is the specification.



Main specification

Operating weight

910KG

Bucket capacity

0.025cbm

Digging bucket width

400mm

Engine model

KOOP KD192F-1

Rated power

7.0/3000

Hydraulic pump model

China brand

Max. Flow

18L/min

Working pressure

17Mpa

Fuel tank capacity

8L

Hydraulic oil tank capacity

15L

Engine oil tank capacity(full/effective)

1.65/0.6L

Travel speed

2km/h

Max. Climbing degree

58%

Arm digging force

5.0KN

Bucket digging force

9.5KN

Electric pressure

12V

Track length

1233mm

Track gauge

740mm

Track width

920mm

Track shoe width

180mm

Turntable width

912mm

Max.digging height

2658mm

Max.dumping height

1806mm

Max.digging depth

1660mm

Max.vertical wall digging depth

1547mm

Height of counterweight

530mm

Ground length(in transportation)

2235mm
