1 Ton Mini Hydraulic Crawler For Many Small Projects High Efficiency
Send Message
products

1 Ton Mini Hydraulic Crawler For Many Small Projects High Efficiency

Basic Information
Place of Origin: Shandong, China
Certification: ISO9001,CE,EAC
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: standard packaging
Delivery Time: 5-8 day
Payment Terms: negotiate
Detail Information
Moving Type: Crawler Excavator Feature: Easy Operation
Excavator: Mini Condition: Excellent Condition
Usage: Building Construction Keywords: High Efficiency

Product Description

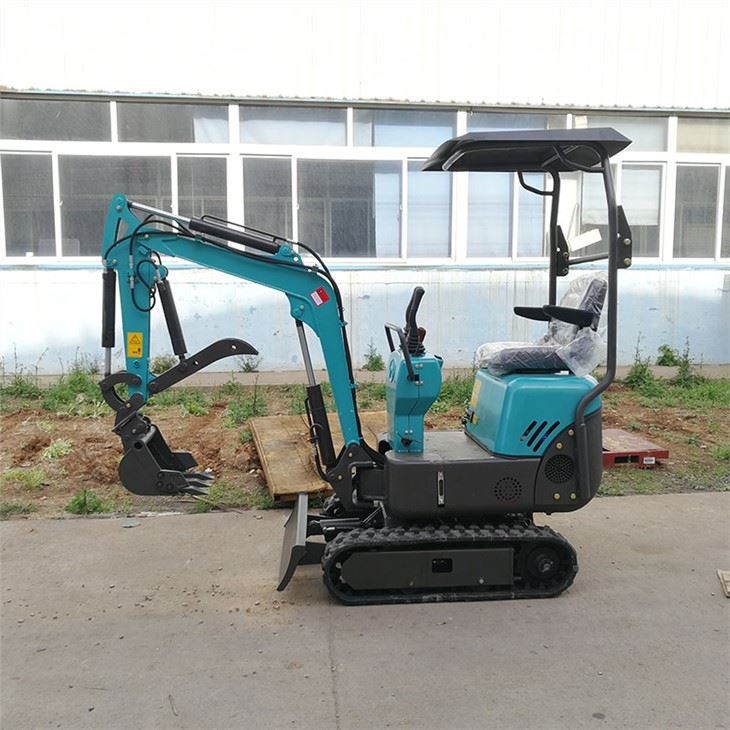

1 ton hydraulic crawler is designed for many small projects,such as losing soil of vegetable greenhouse,campus greening of municipal departments,and digging the hole for tree planting of fruit land.Except the standard bucket,our 1 ton hydraulic crawler can be equipped with other attachments,like quick hitch etc.The quick hitch can increase the efficiency of our machine.With it,the operator can change other attachments sitting on the seat quickly and easily.There is a blade in front of our machine.The operator can use it to level the ground.And also there is a handrail in front of joysticks which the operator can hold it when accomplishing tasks.Here is the specification.



Main specification

Operating weight

910KG

Bucket capacity

0.025cbm

Digging bucket width

400mm

Engine model

KOOP KD192F-1

Rated power

7.0/3000

Hydraulic pump model

China brand

Working pressure

17Mpa

Fuel tank capacity

8L

Hydraulic oil tank capacity

15L

Engine oil tank capacity(full/effective)

1.65/0.6L

Travel speed

2km/h

Arm digging force

5.0KN

Overall length

2960mm

Overall width

930mm

Overall height(to top of the cabin)

2215mm

Counterweight ground clearance

379mm

Tail swing radius

833mm

Track ground length

900mm

Track length

1233mm

Track gauge

740mm

Track shoe width

180mm

Max.digging height

2658mm

Max.dumping height

1806mm

Max.digging depth

1660mm

Max.digging reach at ground level

2998mm

Min.swing radius

1390mm
