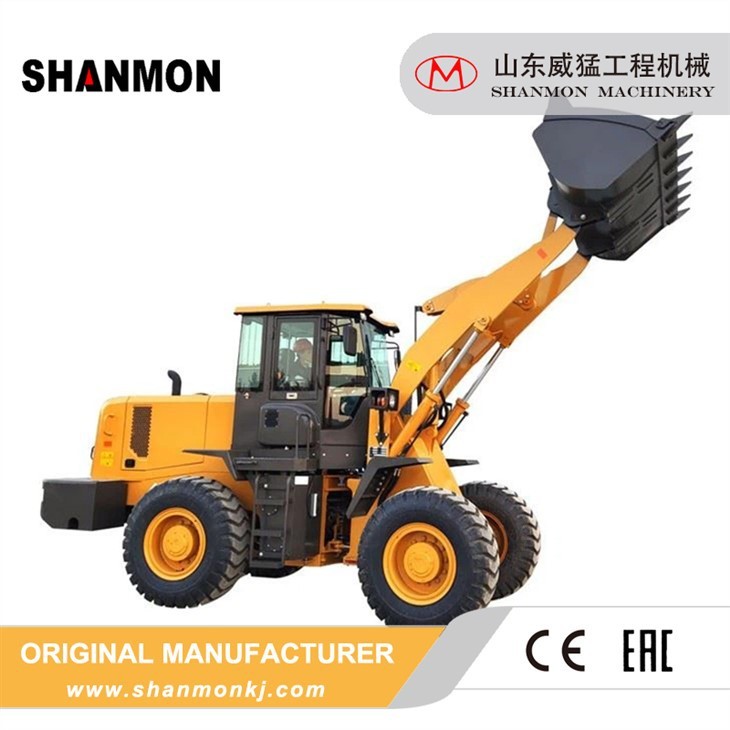

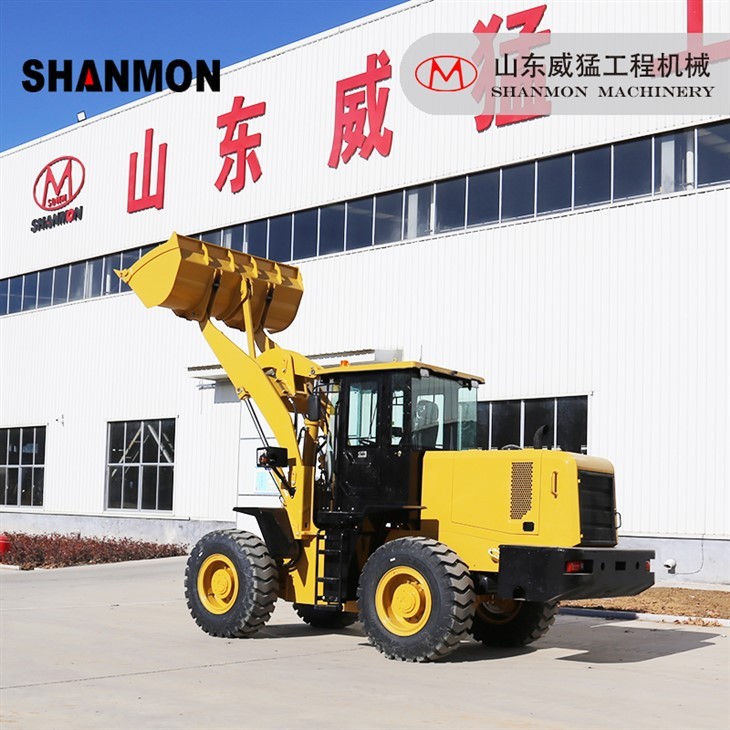

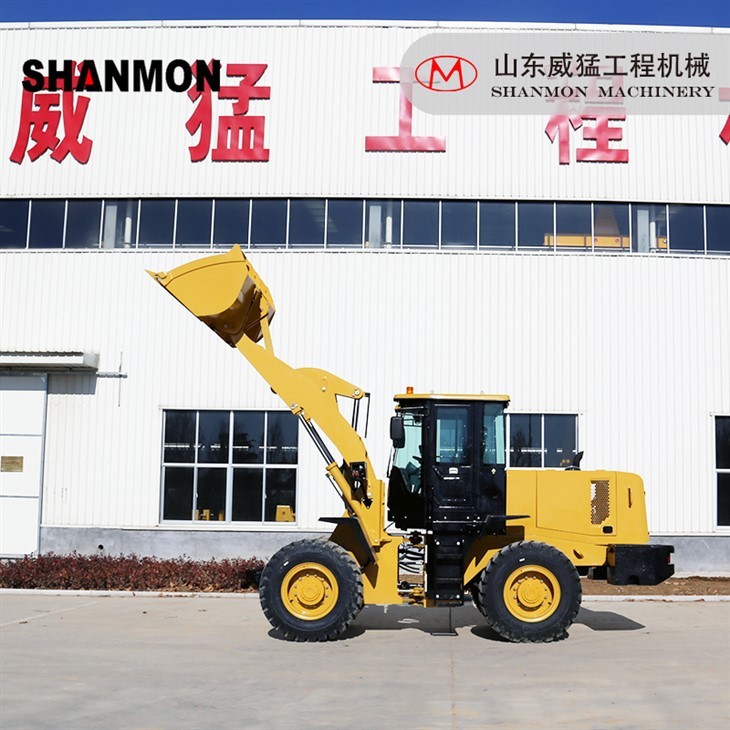

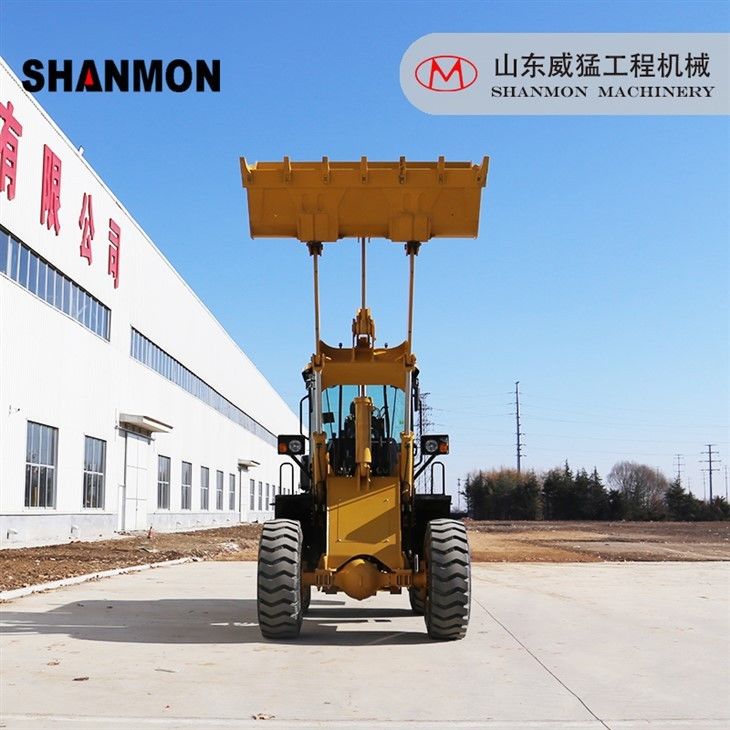

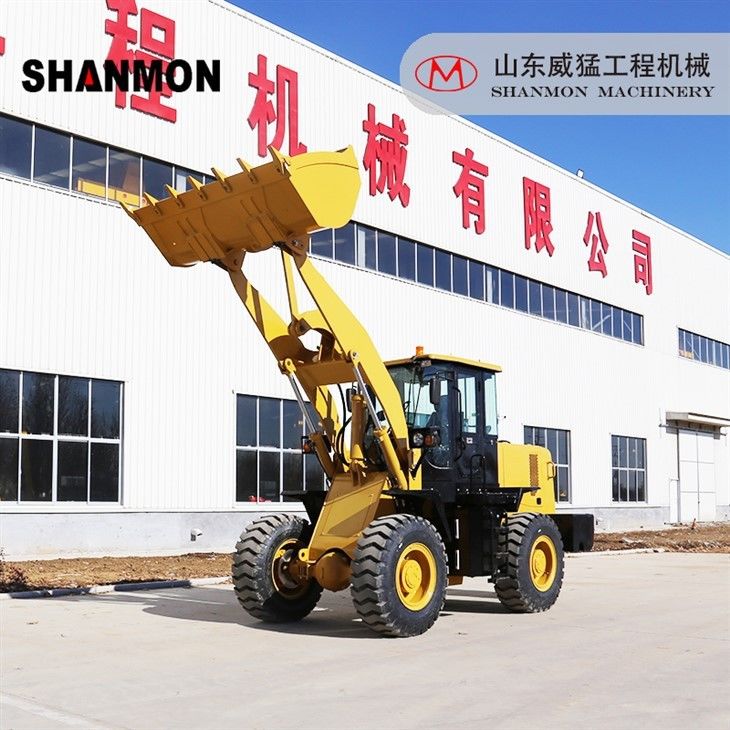

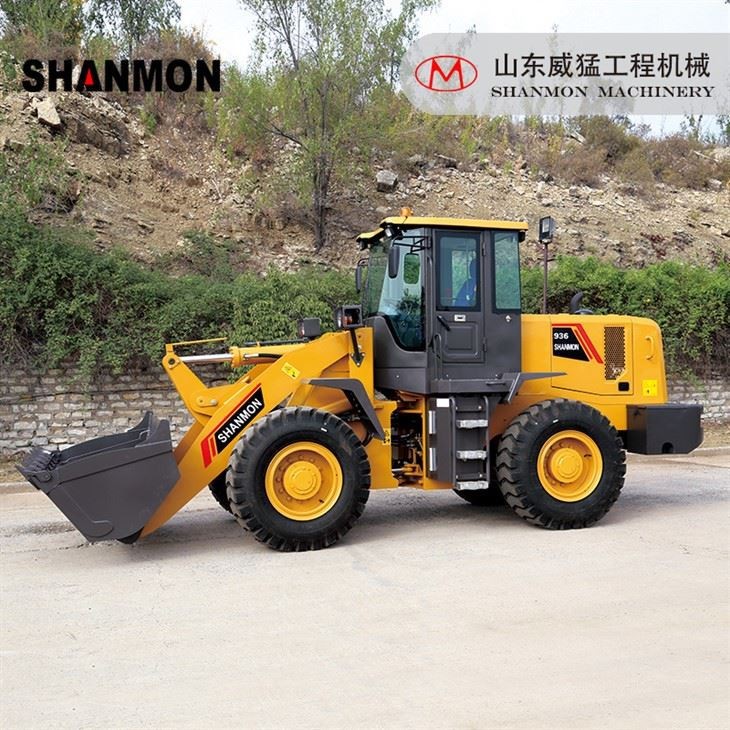

936 wheel loader is compromised of a 1.8m³front mounted bucket,a cabin equipped with air conditioner and 4 wheels.The 936 wheel loader is designed for construction,agriculture,forestry and so on.It is capable of digging,transporting,and loading materials.Our 936 wheel loader is built using the highest quality materials and components to perform well under the harshest conditions.The 936 wheel loader is built with high performing Weichai diesel engine which power our hydraulic systems.The 936 whee loader is equipped with modular radiator which guarantee the 24 hours of uninterrupted operation.The wheel model is 17.5-25.The transmission is the Beilian transmission or the Hangzhou Advance transmission.Here is the specification.
| Performance | Loader lifting capacity | 3000KG |
| Operating weight | 10000KG | |
| Rated bucket capacity | 1.8m³ | |
| Max. tractive force | 97KN | |
| Max. breakout force | 127KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1130mm | |
| Overall dimension(L×W×H) | 7180×2350×3230mm | |
| Min. turning radius | 6250mm | |
| Engine |
Model |
Weichai |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-108×130mm | |
| Rated power | 92KW | |
|
Maximum torque |
500N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJ320B-1 |
|
Gearbox mode |
Powershift engaged straight gear |
|
|
Gear shift |
4 forward shift and 2 reverse shift |
|
|
Maximum speed |
38km/h |
|

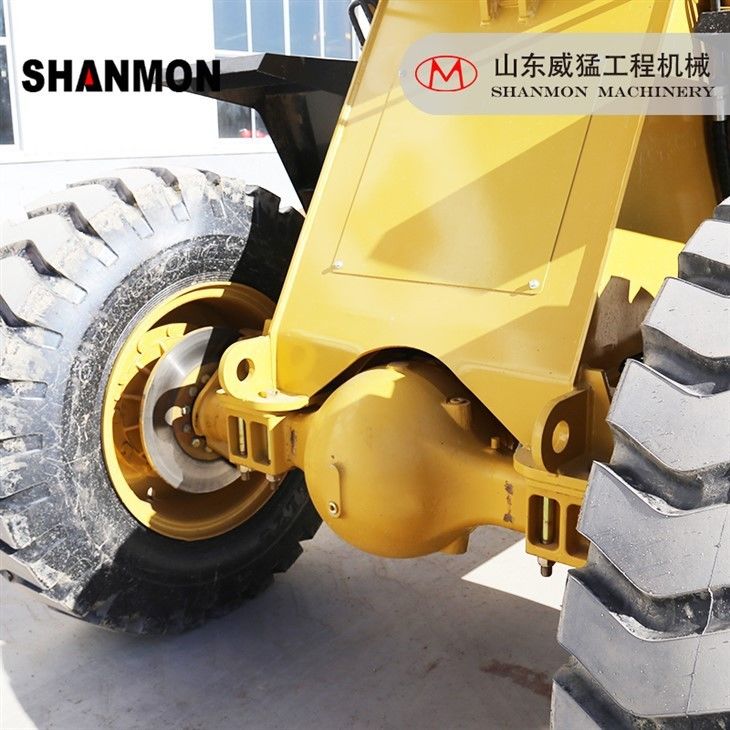

| Drive axles | Wheel base |
2758mm |
|
Wheel tread |
1800mm |
|
|
Ground clearance |
400mm |
|
| Hydraulic system | System working pressure | 16Mpa |
| Boom lifting time | 4.83s | |
| Total time | 9.15±0.5s | |
| Fuel tank capacity | 170L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |

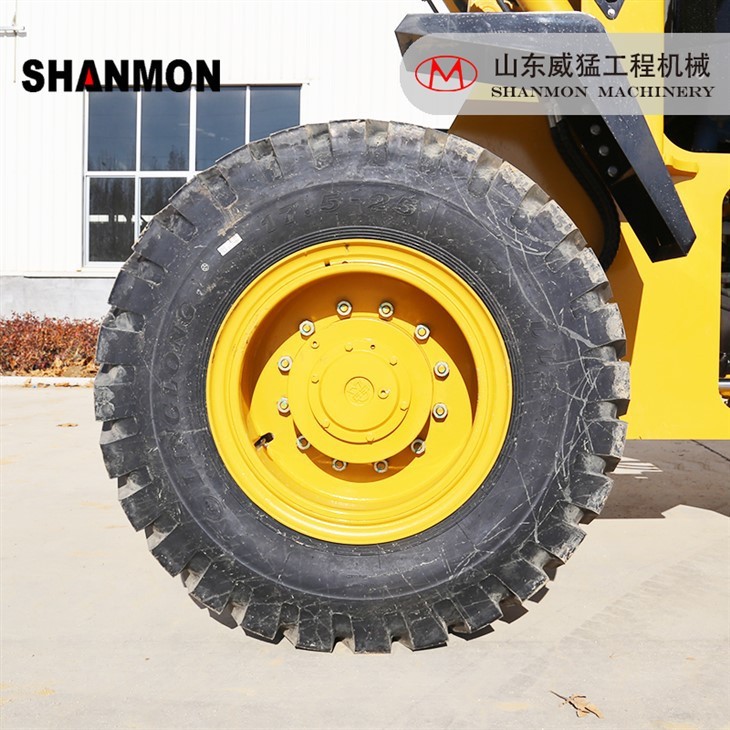

Tire specification |
17.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
