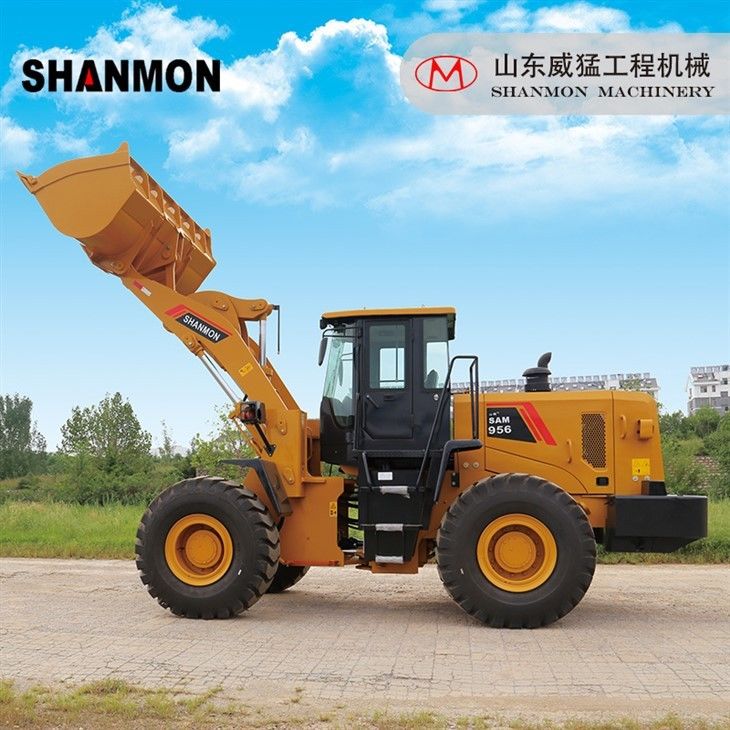

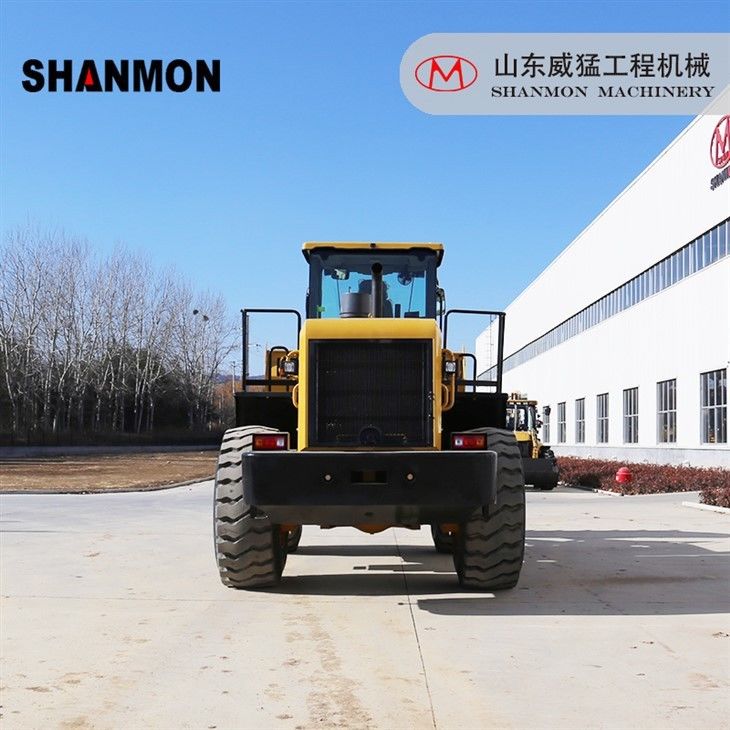

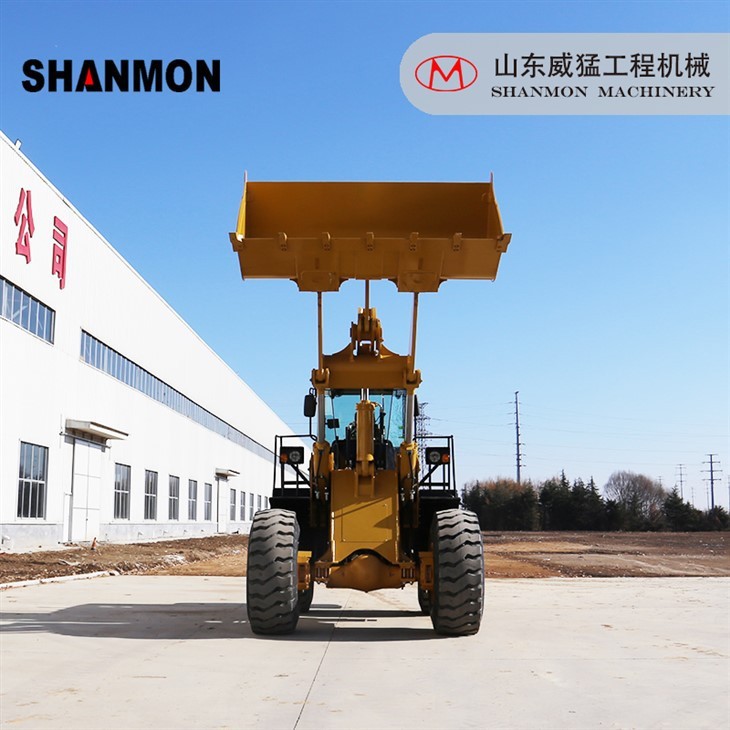

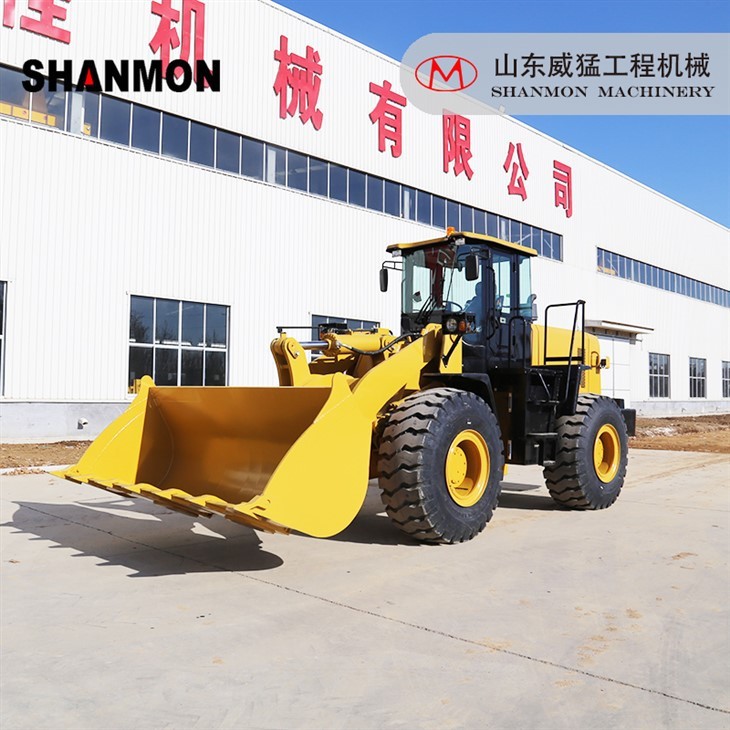

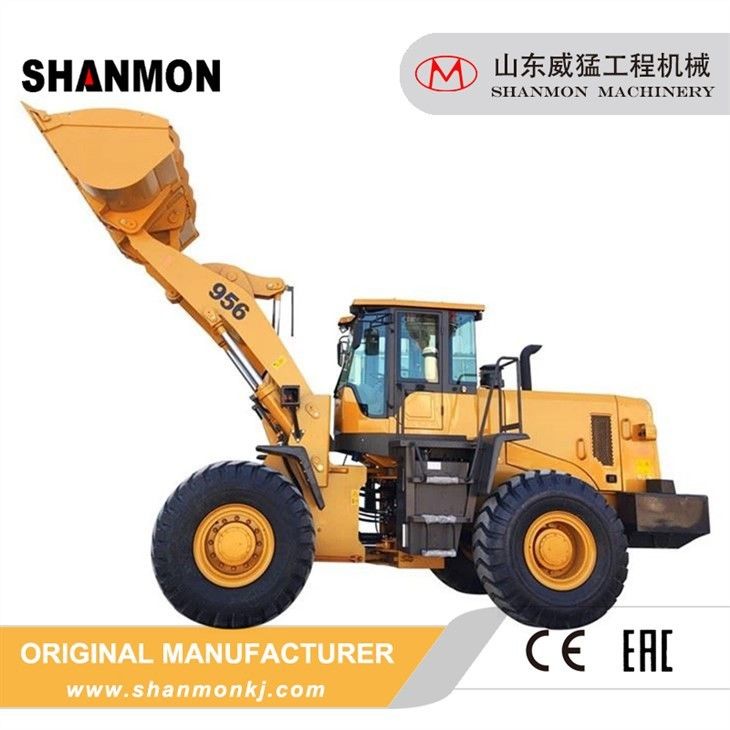

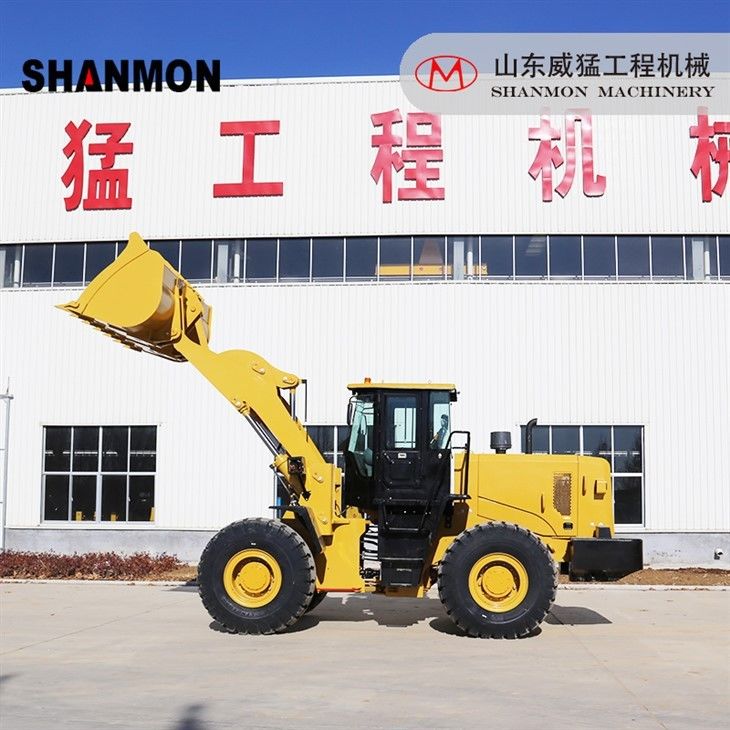

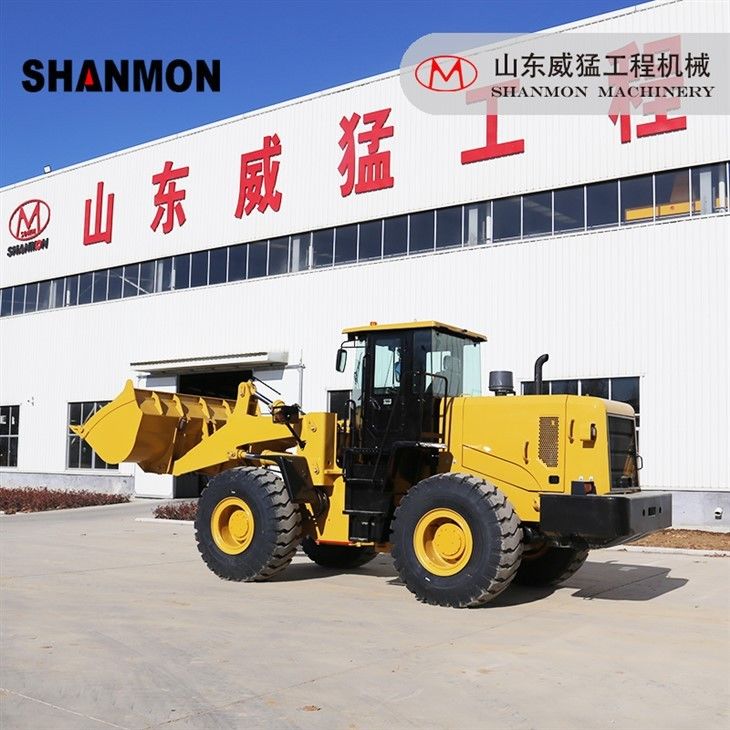

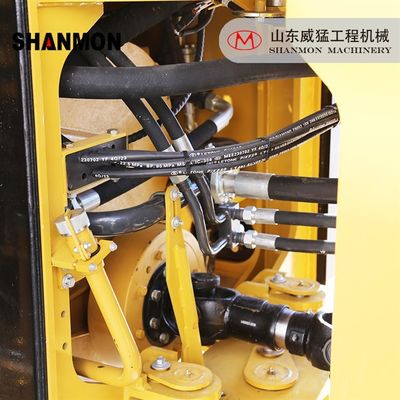

5 ton front-end wheel loader is one of the traditional heavy machinery.The 5 ton front-end wheel loader can perform many different tasks such as scooping,digging,dumping and carrying.It is generally used for carrying construction materials like bricks,pipes and rocks.The structure of 5 ton front-end wheel loader is compact which allows for excellent maneuverability ability in tight spaces.The steering systems are all hydraulic which make the machine more easily to operate.The cabin is equipped with rear view camera therefore the operator can see the scene behind the machine in the cabin.The 5 ton front-end wheel loader is 4 wheels drive.Here is the specification.
| Performance | Loader lifting capacity | 5000KG |
| Operating weight | 16500KG | |
| Rated bucket capacity | 3m³ | |
| Max. tractive force | 167KN | |
| Max. breakout force | 177KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1250mm | |
| Overall dimension(L×W×H) | 8108×2950×3450mm | |
| Min. turning radius | 6640mm | |
| Engine |
Model |
Weichai WD10G220E23 |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 162KW | |
|
Maximum torque |
980N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJSW315 |
|
Gearbox mode |
planetary |
|
|
Gear shift |
2 forward shift and 1 reverse shift |
|
|
Maximum speed |
38km/h |
|
| Drive axles | Wheel base |
3250mm |
|
Wheel tread |
2250mm |
|
|
Ground clearance |
450mm |
|

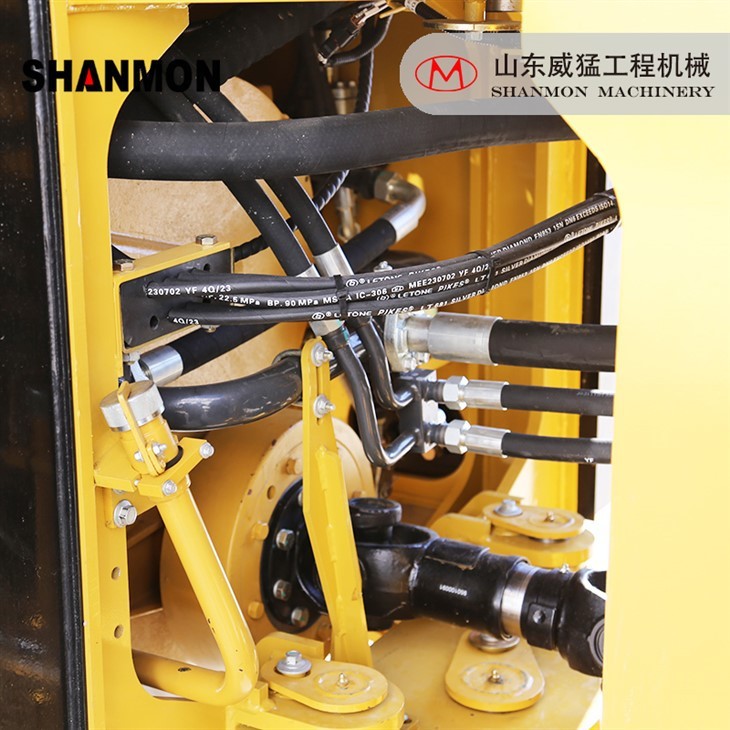

| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 249L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
