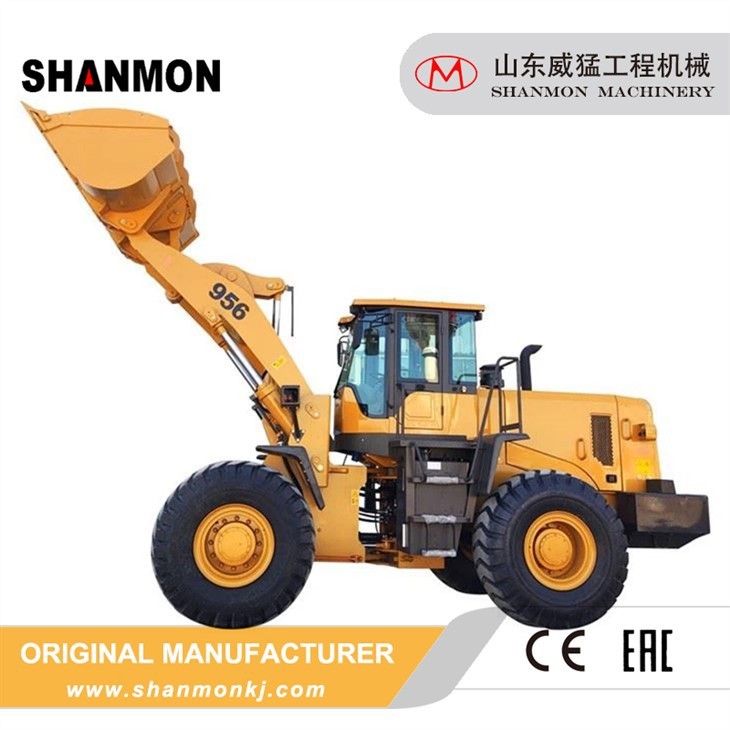

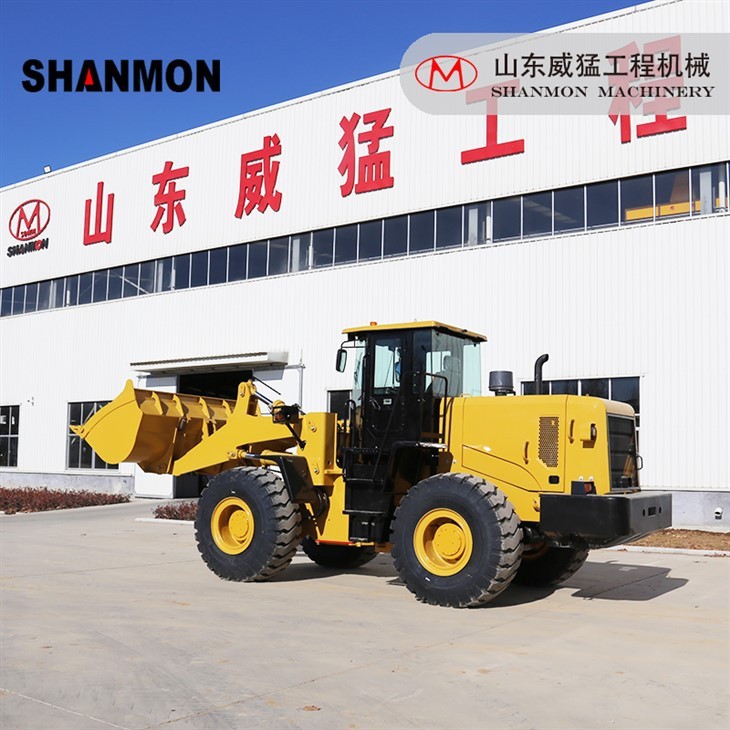

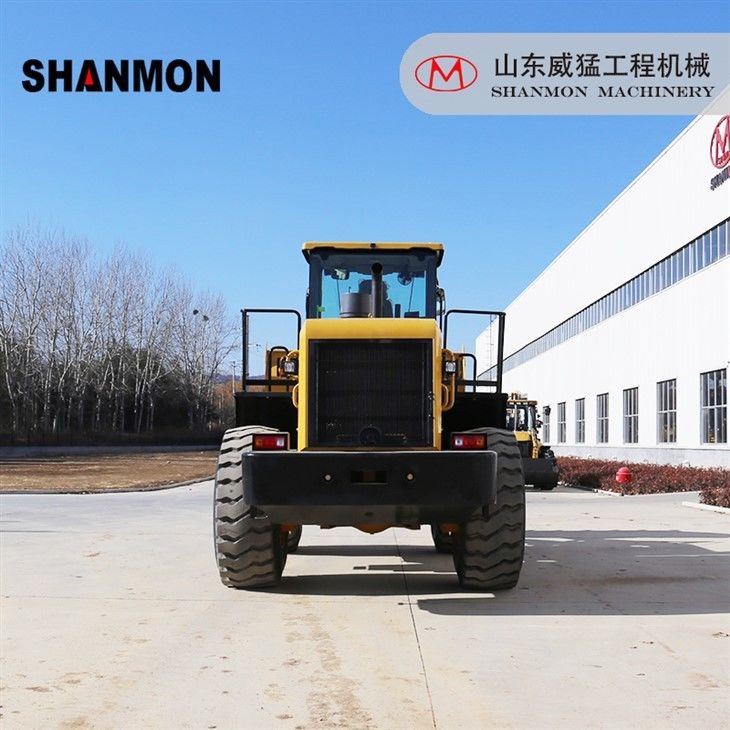

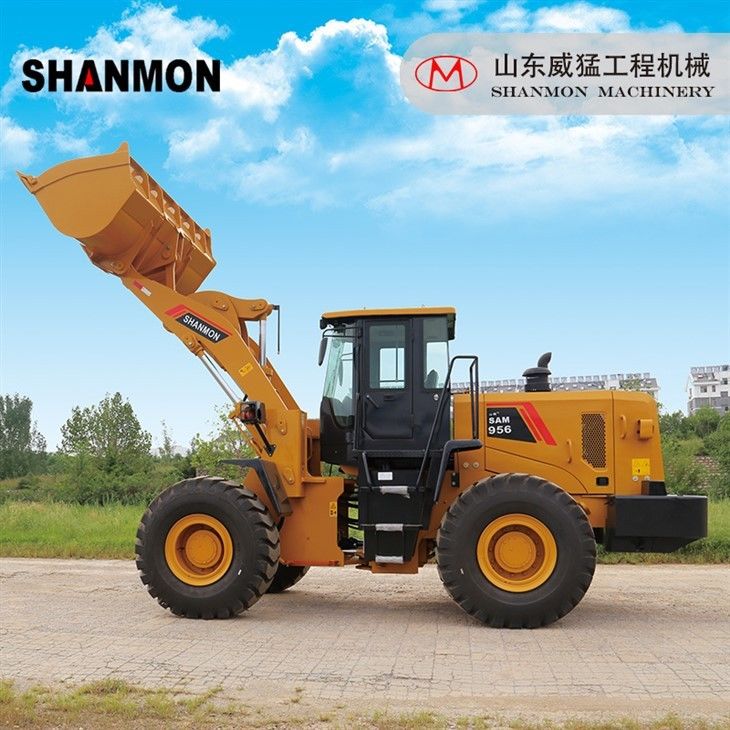

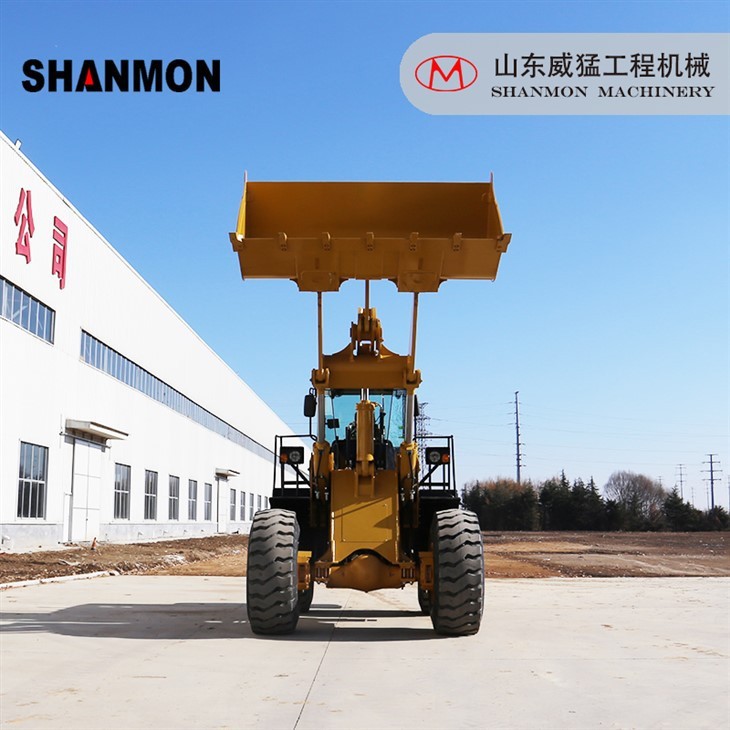

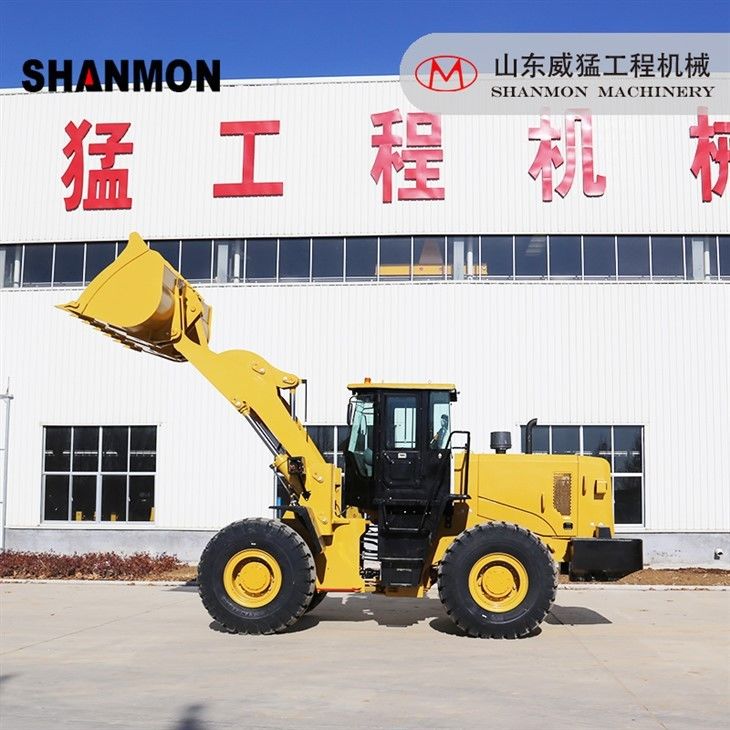

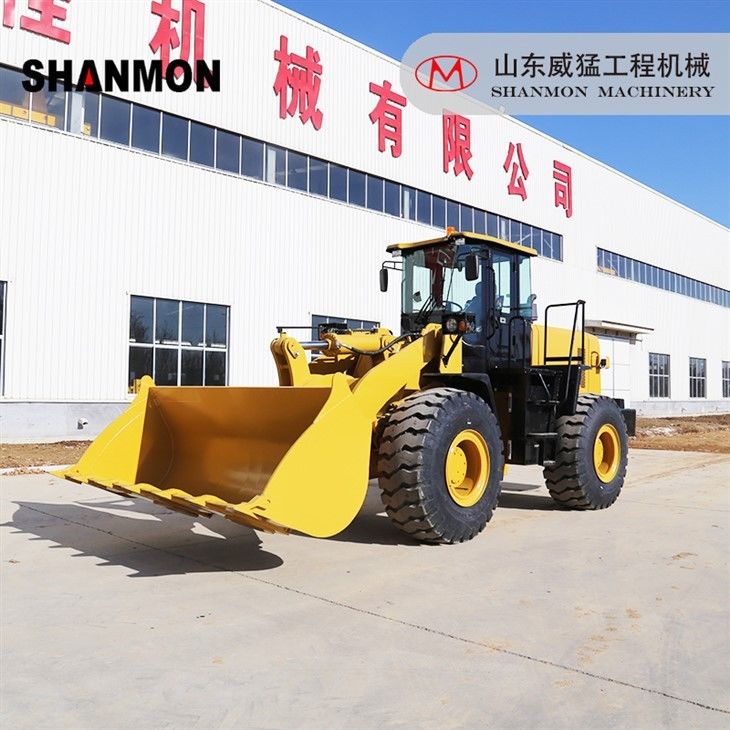

5 ton front loader is including a front end bucket,a cabin with air conditioner and 4 23.5-25 tires.The 5 ton front loader is designed for construction,landscaping,municipality,material handling,agricultural needs,forestry and so on.Due to meet different needs of different clients,it also can be equipped with many different kinds of attachments,such as wood grapple and snowboarding.Our 5 ton front loader equipped with snowboarding can work in cold weather to push snow.The steering system of 5 ton front loader is hydraulically actuated pivot point,which allows the front and rear axles to bear more weight than automotive steering systems.Here is the specification:
| Performance | Loader lifting capacity | 5000KG |
| Operating weight | 16500KG | |
| Rated bucket capacity | 3m³ | |
| Max. tractive force | 167KN | |
| Max. breakout force | 177KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1250mm | |
| Overall dimension(L×W×H) | 8108×2950×3450mm | |
| Min. turning radius | 6640mm | |
| Engine |
Model |
Weichai WD10G220E23 |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 162KW | |
|
Maximum torque |
980N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJSW315 |
|
Gearbox mode |
planetary |
|
|
Gear shift |
2 forward shift and 1 reverse shift |
|
|
Maximum speed |
38km/h |
|
| Drive axles | Wheel base |
3250mm |
|
Wheel tread |
2250mm |
|
|
Ground clearance |
450mm |
|

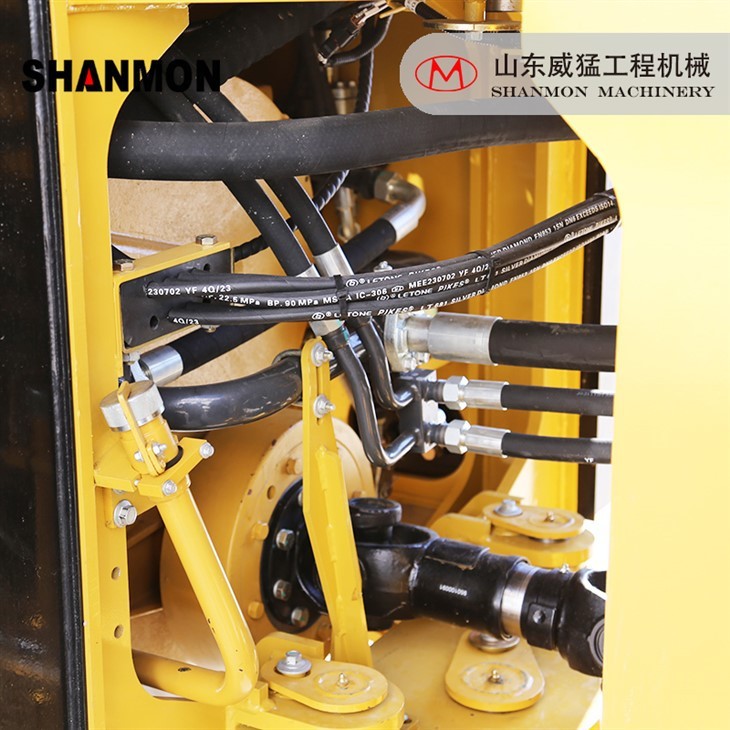

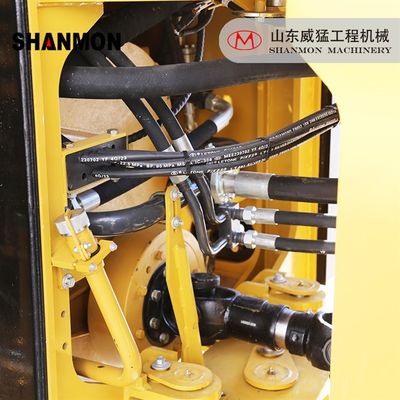

| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 249L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
