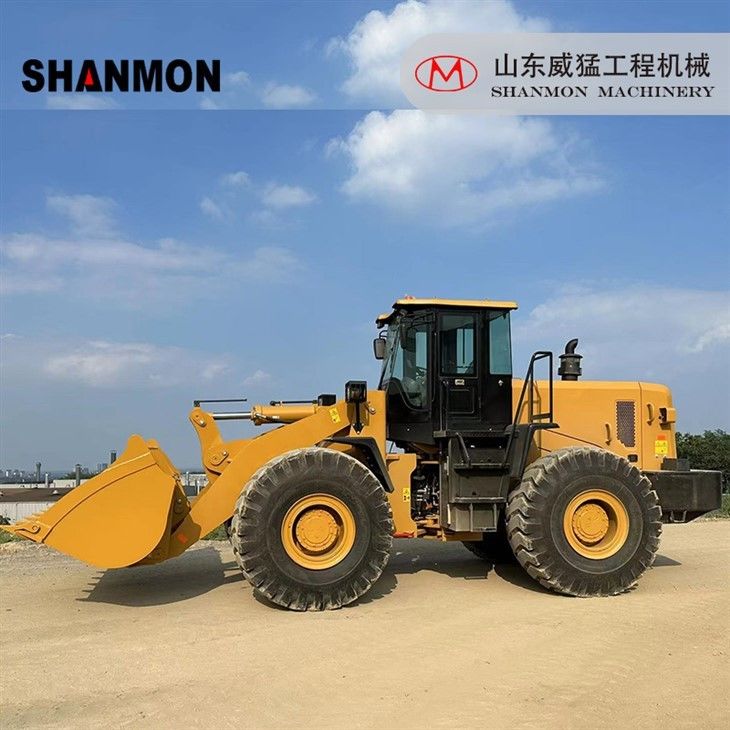

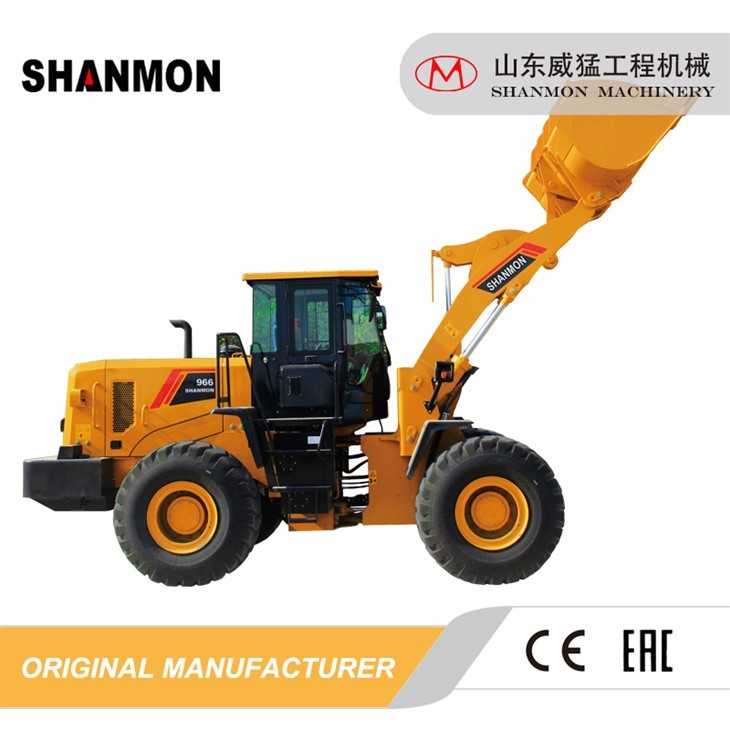

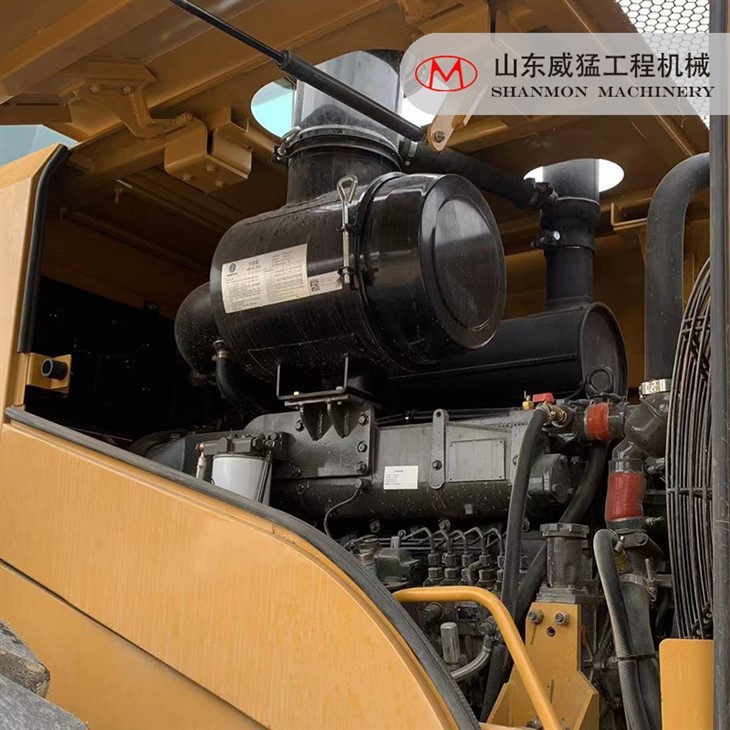

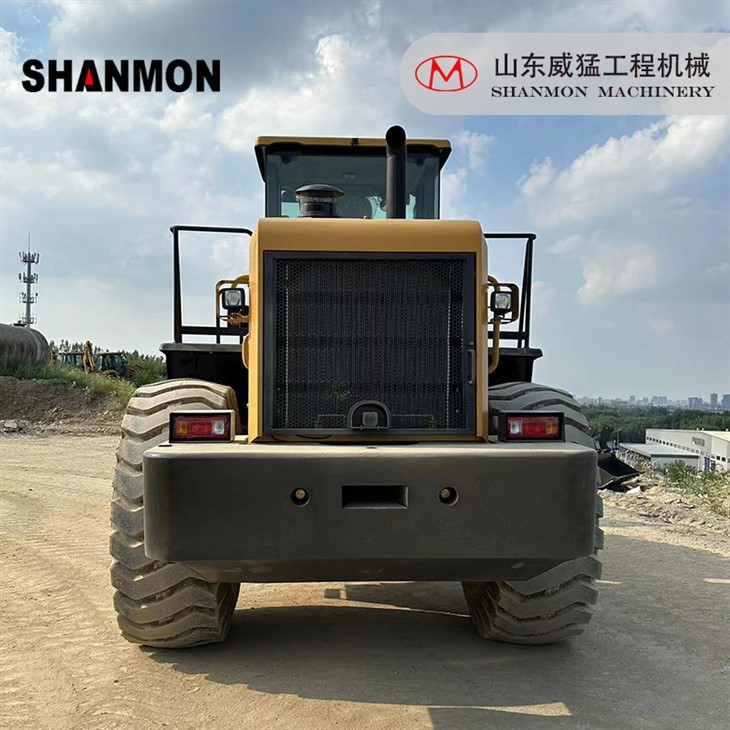

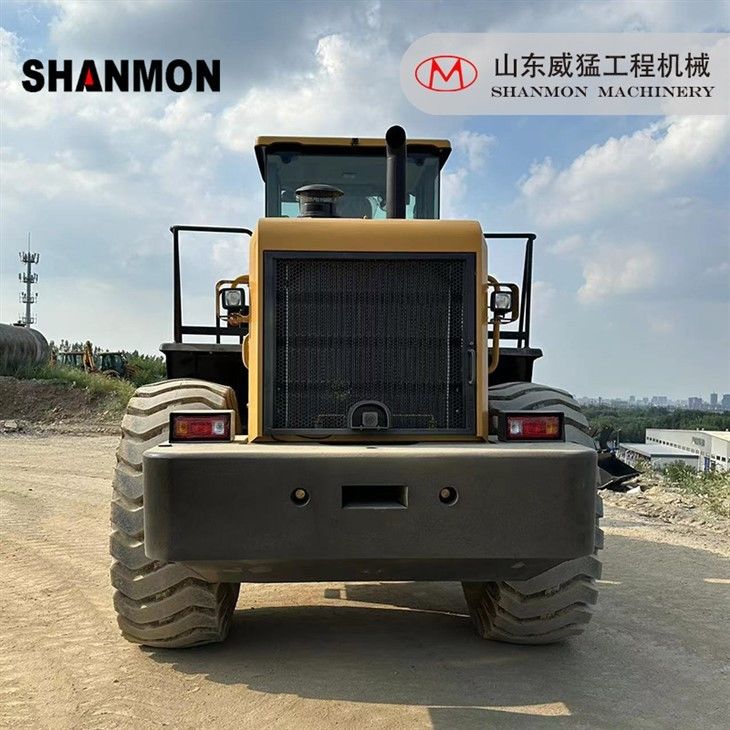

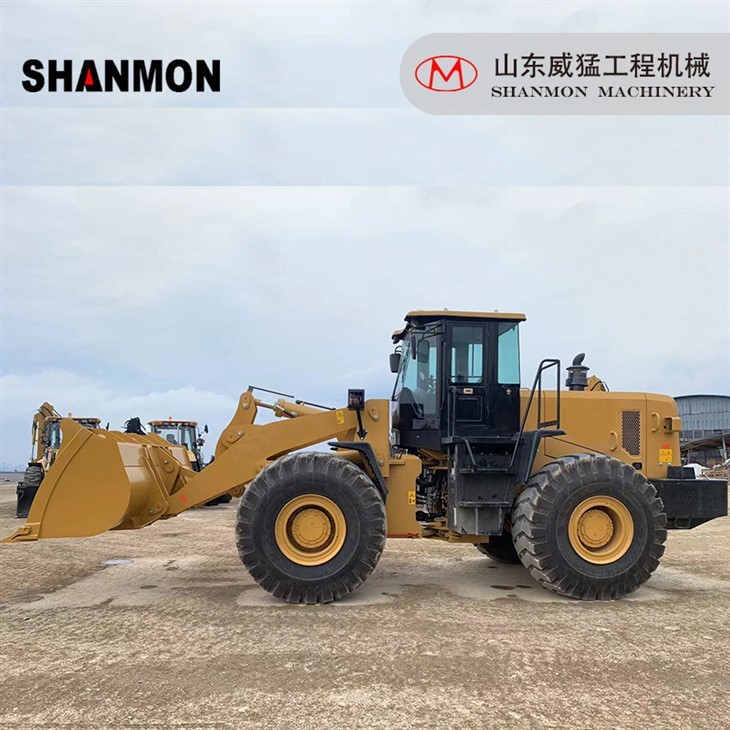

966 6 ton wheel loader is a versatile machine,consisting of a 3.5m³bucket which is supported by a boom structure and is used to dig,fill,scoop,lift,carry and dump materials into trucks,piles,bins and so on.The 966 front-end wheel loader is 4-wheel drive and all the axles and pumps are domestic which are produced by the first-class factories in China.The engine is Weichai with 178KW horsepower and it has an articulated body i.e.a hinge between the front and the rear assembly.It is fully hydraulic control which makes the whole machine more easily to operate and the operator can be able to control the boom and the bucket quickly and easily.The whole wheel loader is made of manganese steel.
| Performance | Loader lifting capacity | 6000KG |
| Operating weight | 20000KG | |
| Rated bucket capacity | 3.3-3.5m³ | |
| Max. breakout force | 183KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3048mm | |
| Overall dimension(L×W×H) | 8414×3370×3458mm | |
| Engine |
Model |
Weichai 10G |
| Rated power | 162KW | |
|
Rated Speed |
2200r/min | |
|
Displacement |
9.726L |
|
| Transmission system |
Gearbox mode |
Countershaft power shift |
|
Gear shift |
4 forward and 4 reverse gears |
|
|
Maximum speed |
38km/h |
|
| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.3s | |
| Total time | 9.7s | |
| Self-levelling bucket | yes | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
