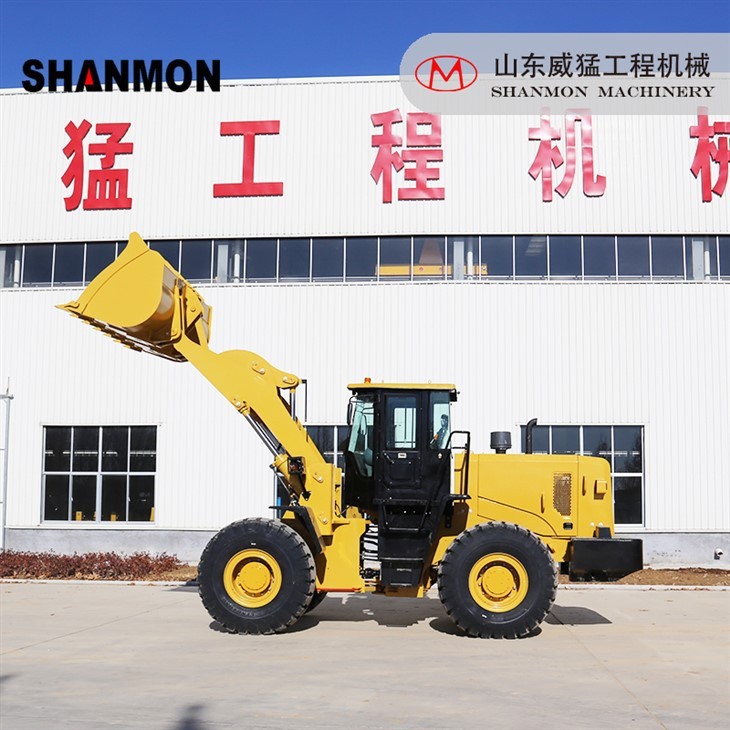

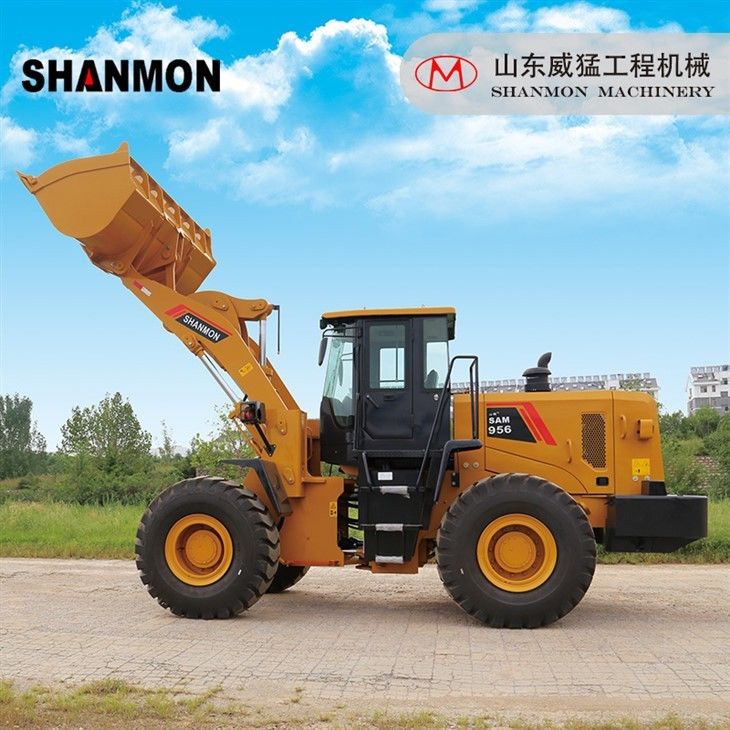

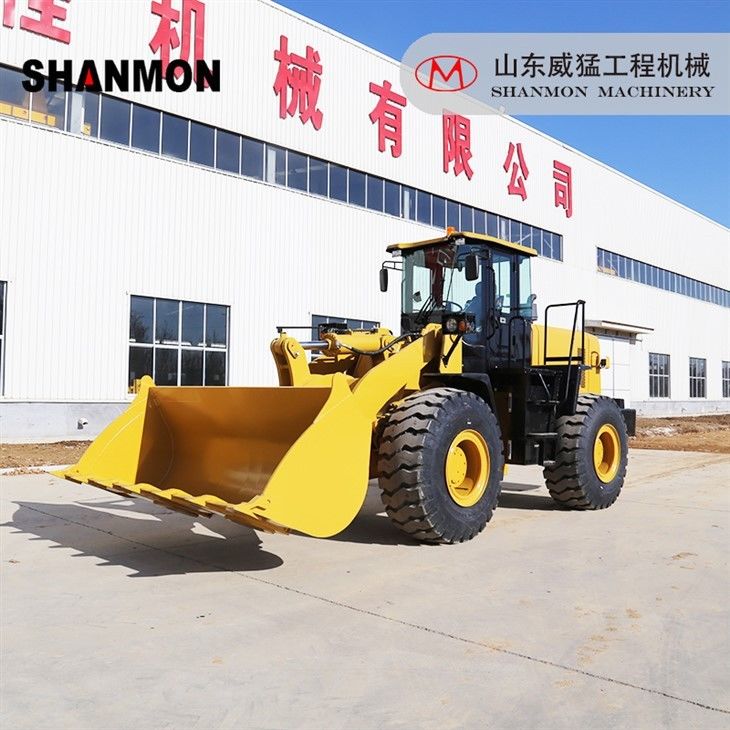

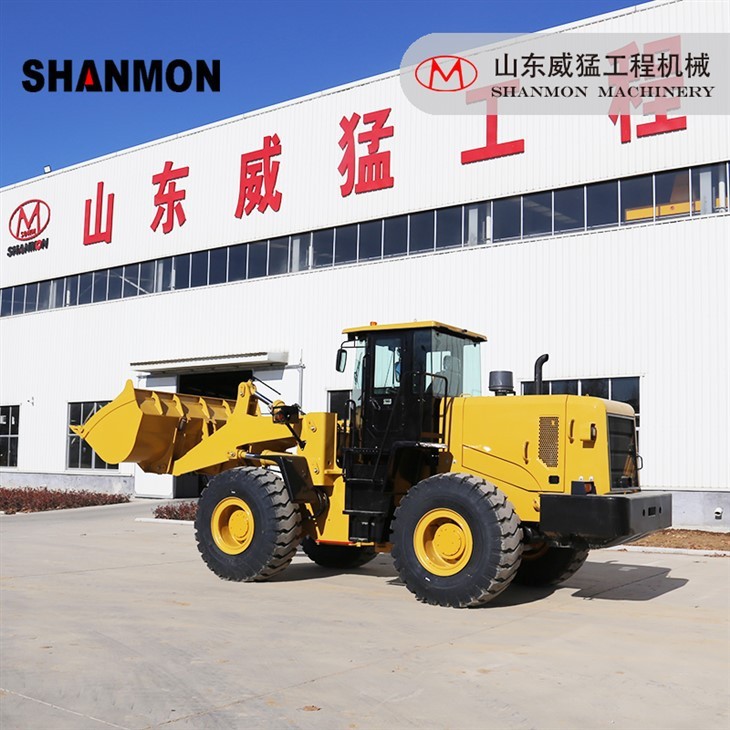

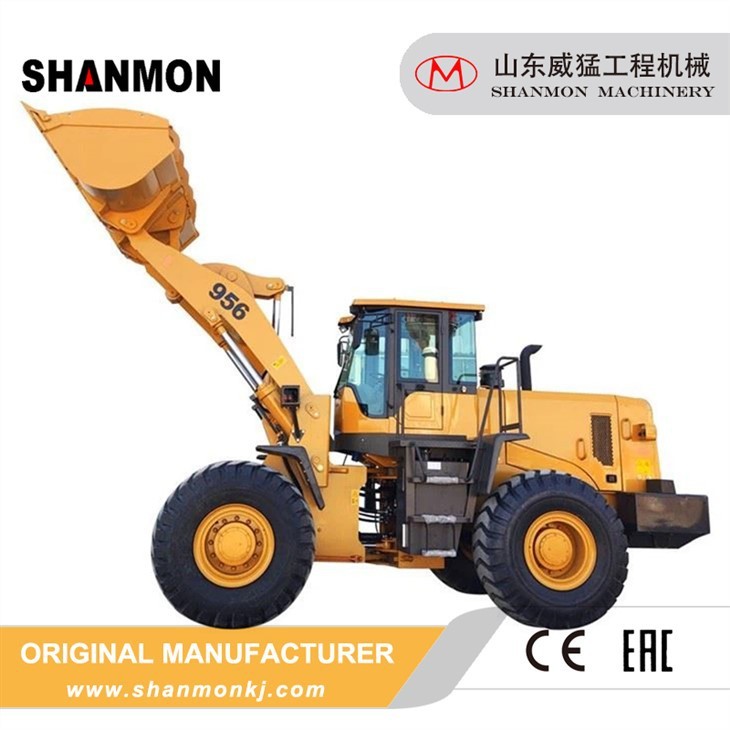

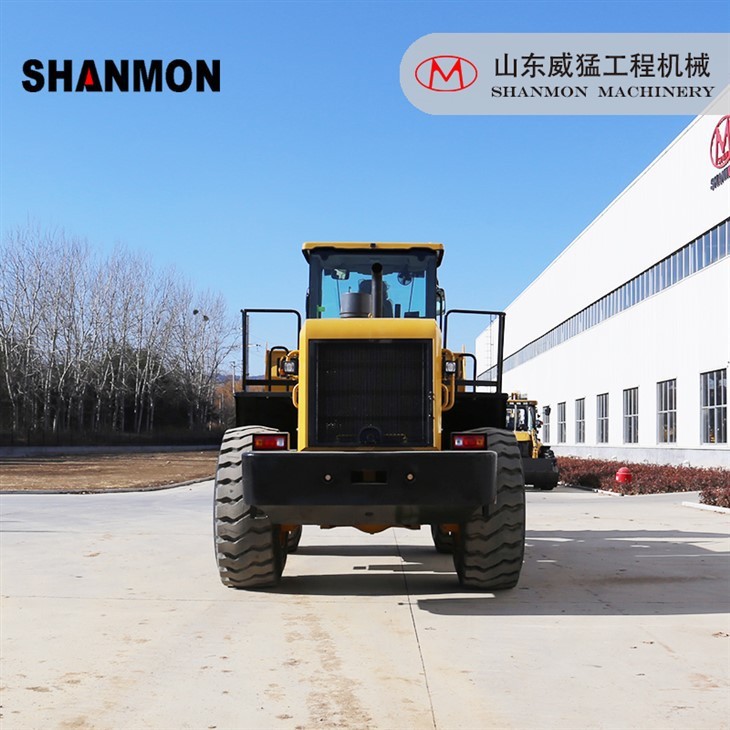

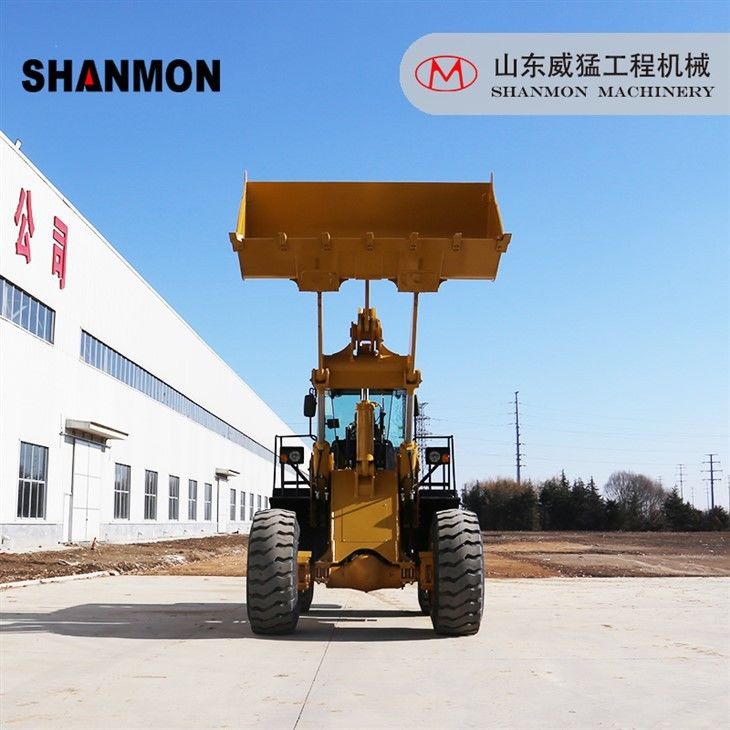

956 front loader is a kind of construction machinery that is equipped with a front mount bucket and also 4 wheels drive.The 956 front loader is designed for loading,lifting,and transporting etc.Except the domestic engine like Weichai,our 956 front loader can be equipped with Cummins engine(StageⅡ) and its horsepower is 160KW and the model is 6LT9.3.The torque converter is double stage,four elements.The machine is articulated.Our 956 front loader is adopted modular radiator which could make sure 24 hours of uninterrupted operation.The whole frame is made of manganese steel which is light but high strength.The hydraulic system is reliable and efficient.Here is the specification.
| Performance | Loader lifting capacity | 5000KG |
| Operating weight | 16500KG | |
| Rated bucket capacity | 3m³ | |
| Max. tractive force | 167KN | |
| Max. breakout force | 177KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1250mm | |
| Overall dimension(L×W×H) | 8108×2950×3450mm | |
| Min. turning radius | 6640mm | |
| Engine |
Model |
Weichai WD10G220E23 |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 162KW | |
|
Maximum torque |
980N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJSW315 |
|
Gearbox mode |
planetary |
|
|
Gear shift |
2 forward shift and 1 reverse shift |
|
|
Maximum speed |
38km/h |
|
| Drive axles | Wheel base |
3250mm |
|
Wheel tread |
2250mm |
|
|
Ground clearance |
450mm |
|
| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 249L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
