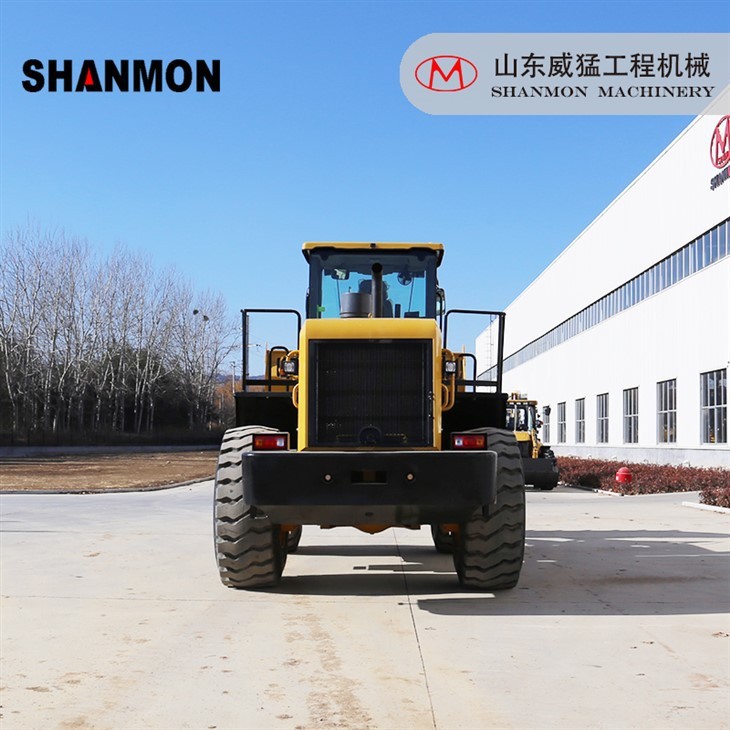

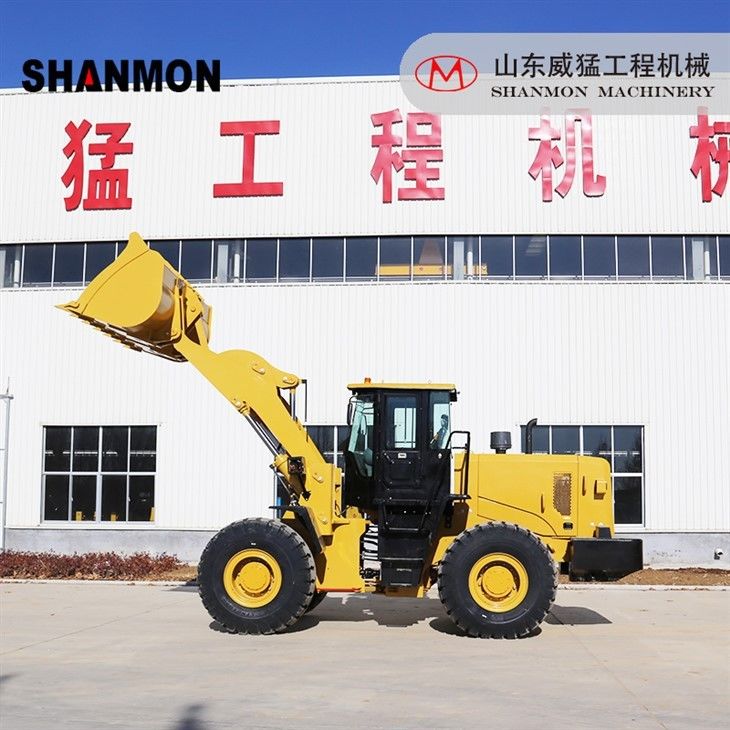

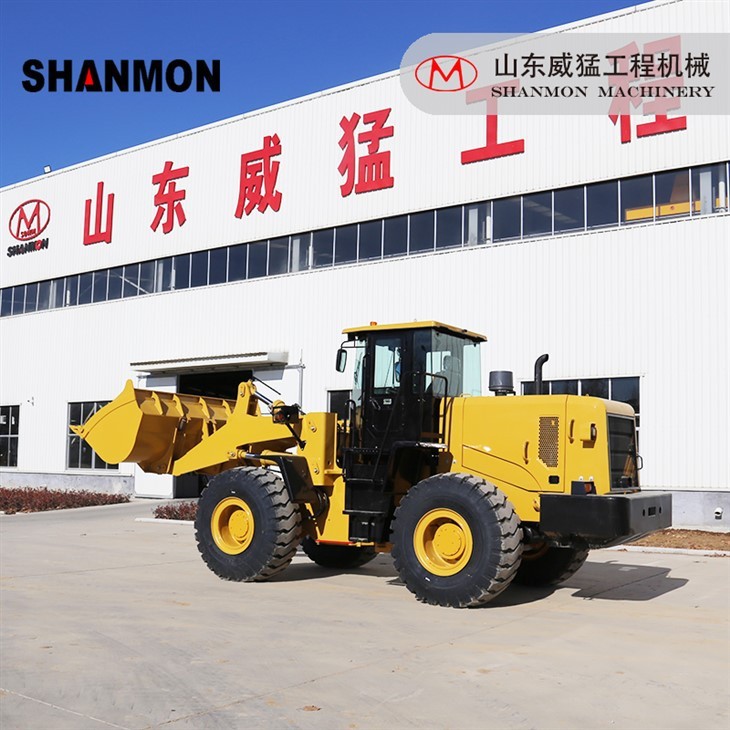

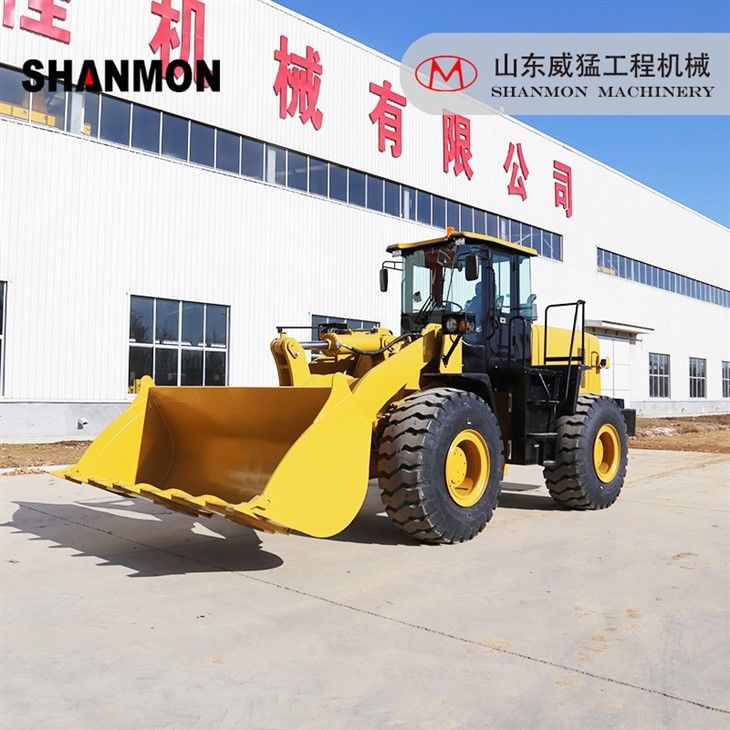

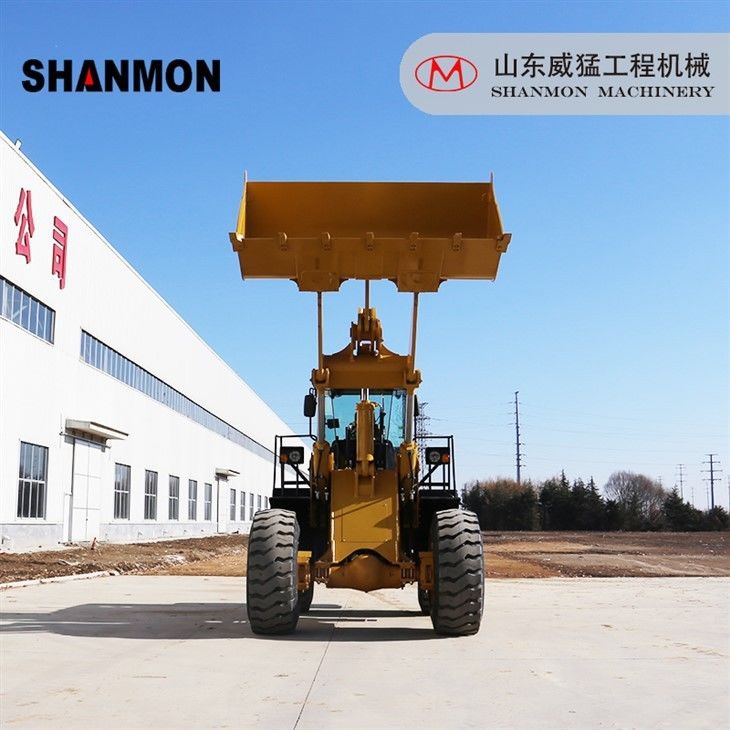

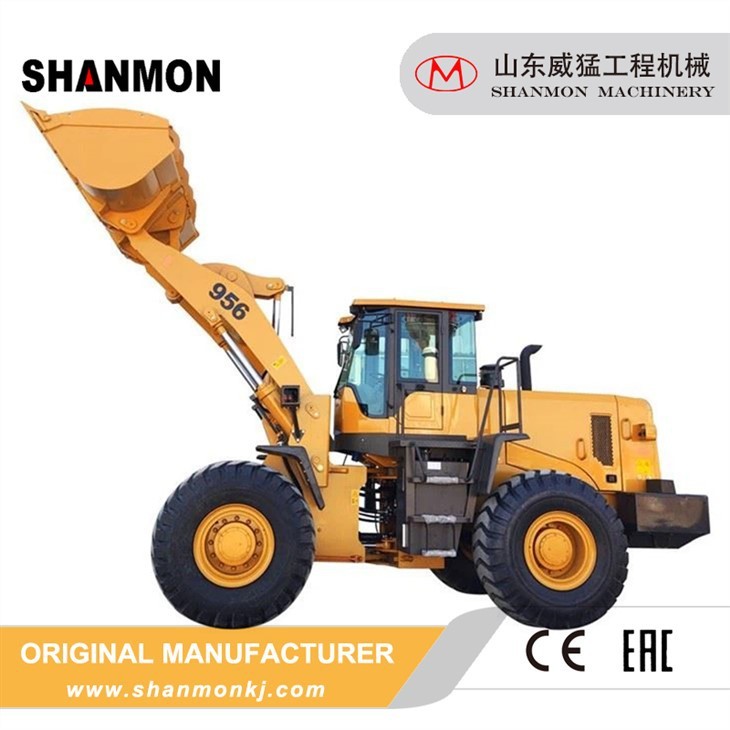

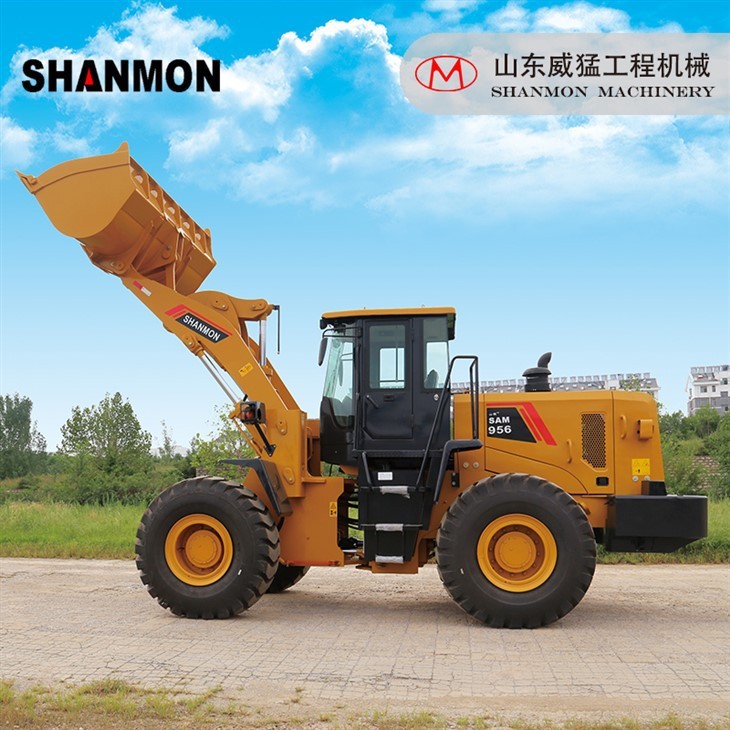

5 ton shovel loader is a kind of heavy equipment used in construction to move or load materials such as soil and rocks.5 ton shove loader is designed for construction,mining and so on.It is compromised of a 3.0m³front mounted bucket.The whole frame of our 5 ton shovel loader is made of manganese steel which make the whole machine stronger and more efficiency.The axles,pumps and valves are manufactured by the first-class factories.The transmission is Hangzhou Advance or Beilian.The whole frame is made of manganese steel which make the whole machine stronger and more stable when operating it.Our 5 ton shovel loader has high service life,high road carrying capacity and high working speed.The modular radiator can guarantee 24 hours of uninterrupted operation.Here is the specification:
| Performance | Loader lifting capacity | 5000KG |
| Operating weight | 16500KG | |
| Rated bucket capacity | 3m³ | |
| Max. tractive force | 167KN | |
| Max. breakout force | 177KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1250mm | |
| Overall dimension(L×W×H) | 8108×2950×3450mm | |
| Min. turning radius | 6640mm | |
| Engine |
Model |
Weichai WD10G220E23 |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 162KW | |
|
Maximum torque |
980N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJSW315 |
|
Gearbox mode |
planetary |
|
|
Gear shift |
2 forward shift and 1 reverse shift |
|
|
Maximum speed |
38km/h |
|
| Drive axles | Wheel base |
3250mm |
|
Wheel tread |
2250mm |
|
|
Ground clearance |
450mm |
|
| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 249L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
![]()
