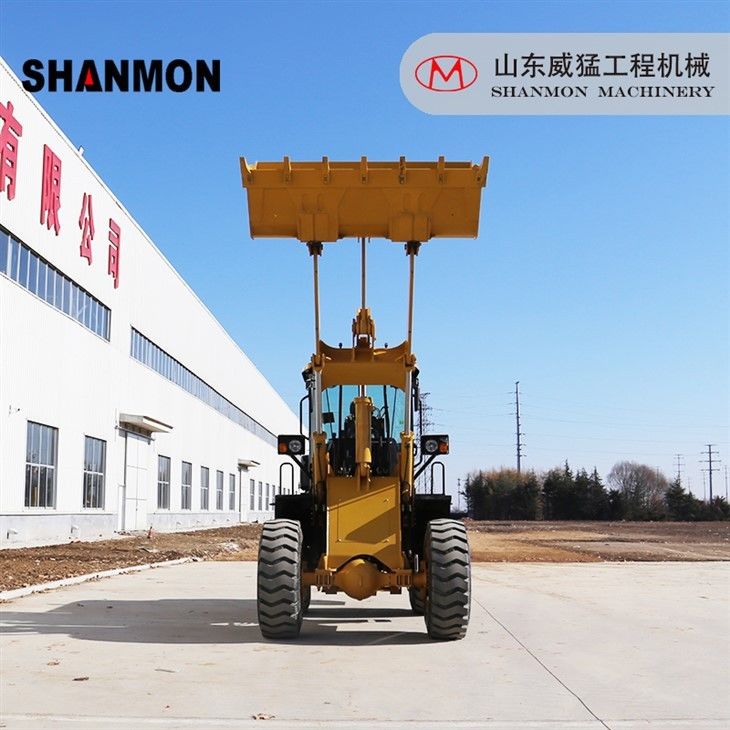

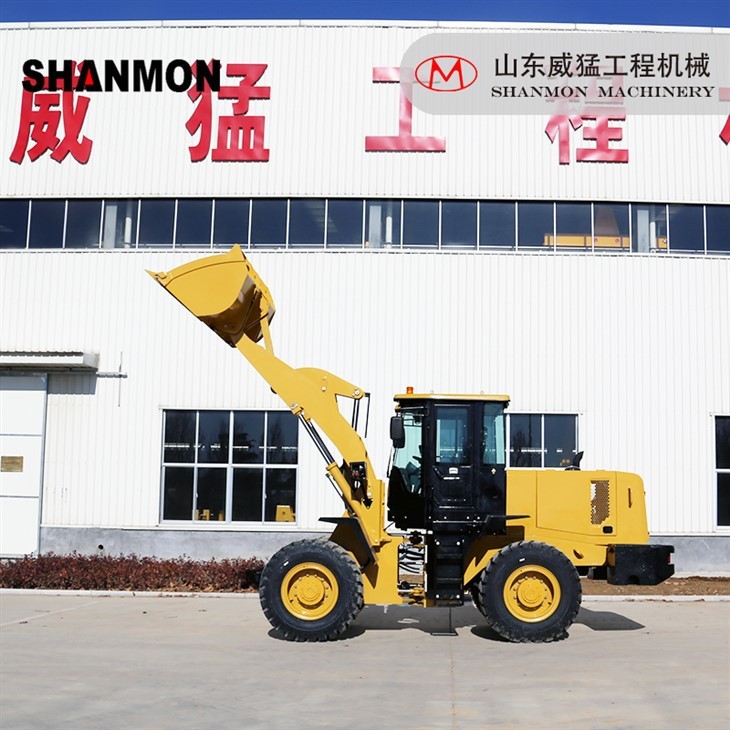

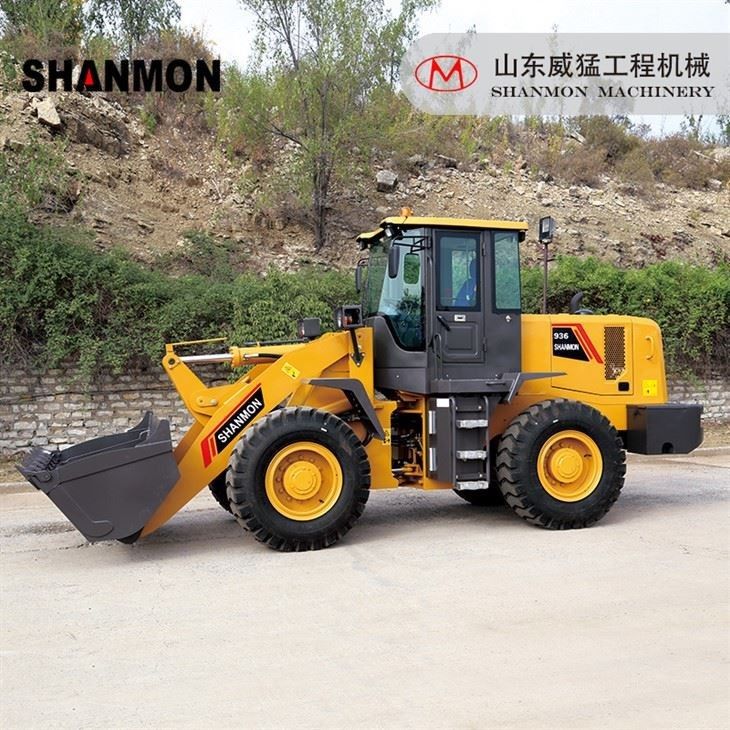

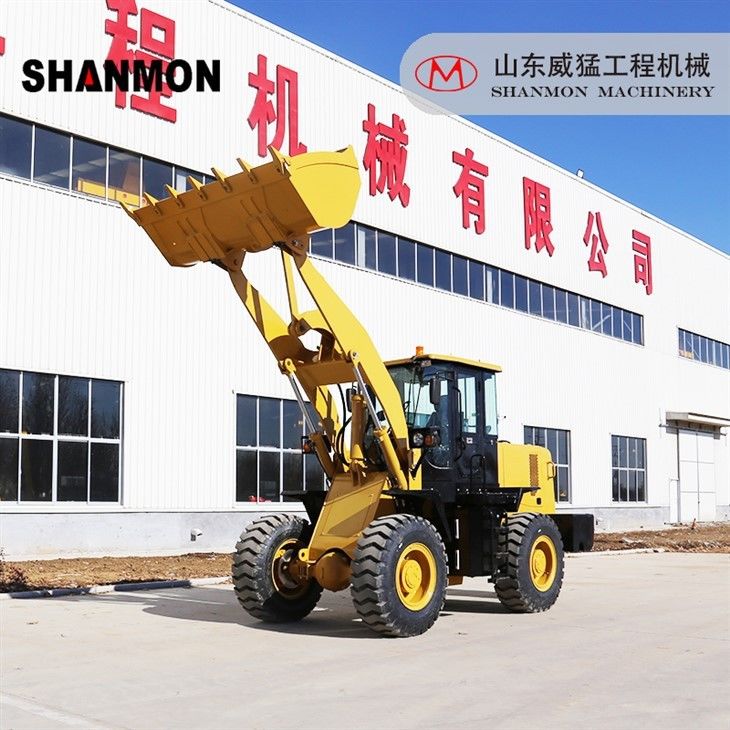

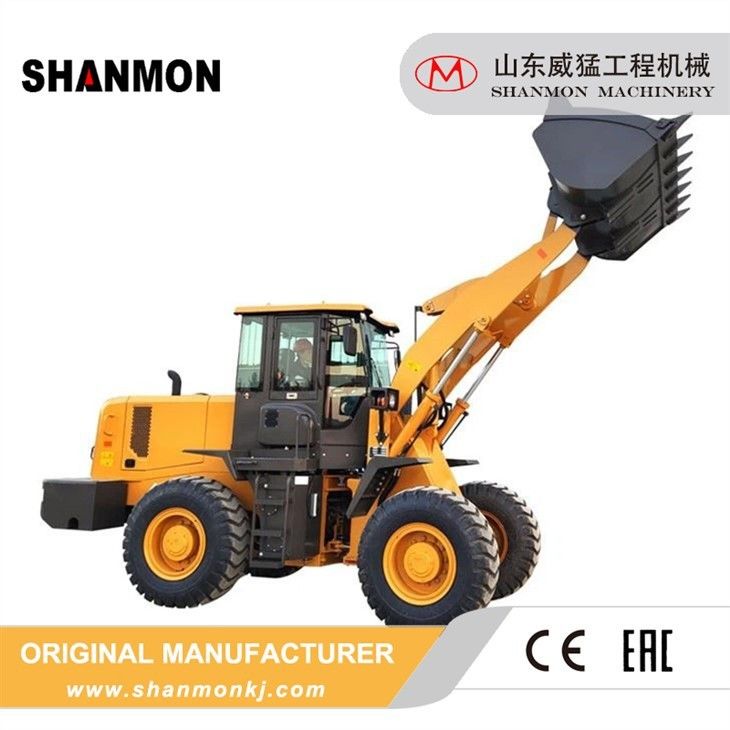

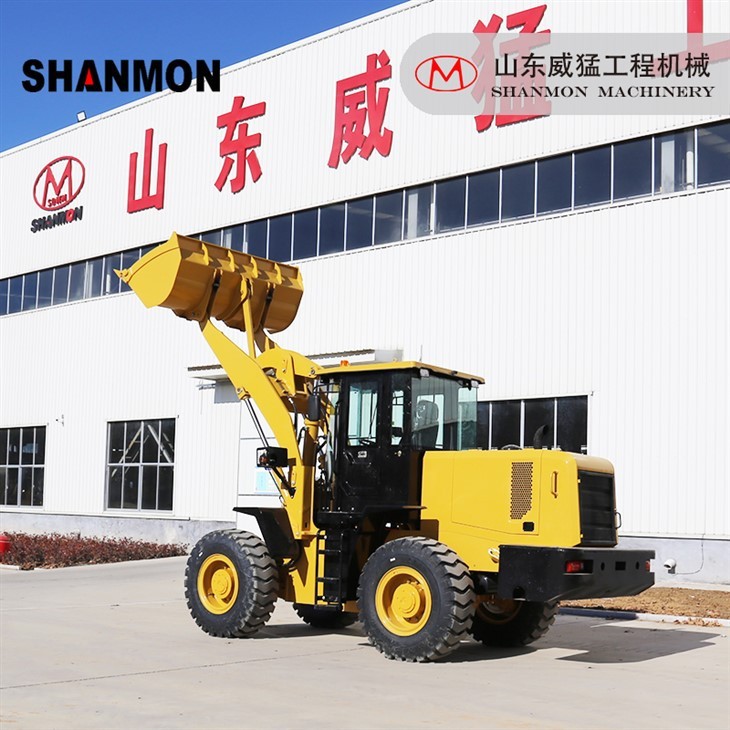

3 ton front loader is designed for utilities,building,agriculture,forestry and so on.Our 3 ton front loader is equipped with Tie 2 Weichai engine which fits well with our machine.The engine hood and large radiator are designed behind the cabin with two large openings on them respectively so that the operator can have much more space to check and maintenance the engine and other parts.The cabin is included two curved arc windshield which give the operator better view to finish the tasks and also the air conditioner and good sealing provide the operator a better driving environment.Here is the specification.
| Performance | Loader lifting capacity | 3000KG |
| Operating weight | 10000KG | |
| Rated bucket capacity | 1.8m³ | |
| Max. tractive force | 97KN | |
| Max. breakout force | 127KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1130mm | |
| Overall dimension(L×W×H) | 7180×2350×3230mm | |
| Min. turning radius | 6250mm | |
| Engine |
Model |
Weichai |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-108×130mm | |
| Rated power | 92KW | |
|
Maximum torque |
500N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJ320B-1 |
|
Gearbox mode |
Powershift engaged straight gear |
|
|
Gear shift |
4 forward shift and 2 reverse shift |
|
|
Maximum speed |
38km/h |
|

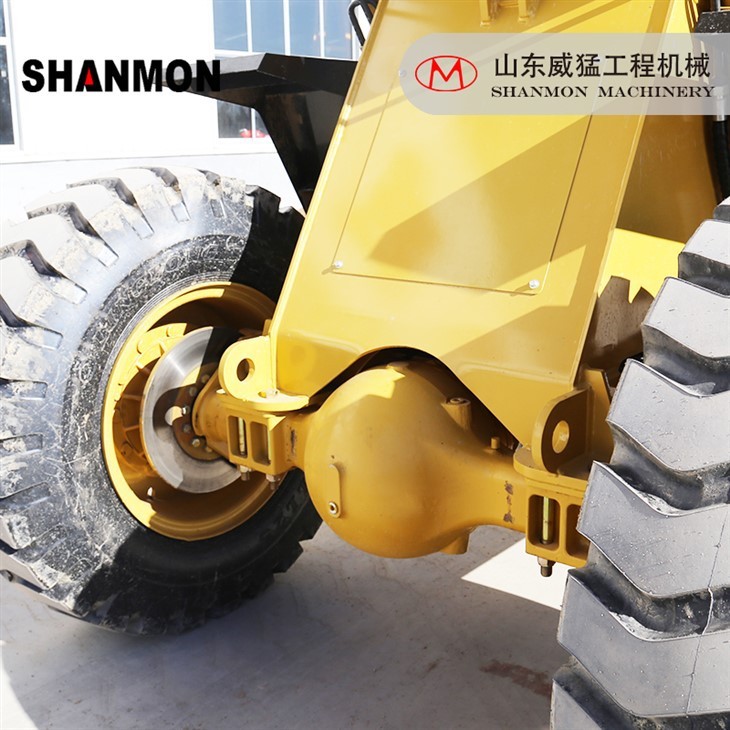

| Drive axles | Wheel base |
2758mm |
|
Wheel tread |
1800mm |
|
|
Ground clearance |
400mm |
|
| Hydraulic system | System working pressure | 16Mpa |
| Boom lifting time | 4.83s | |
| Total time | 9.15±0.5s | |
| Fuel tank capacity | 170L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |

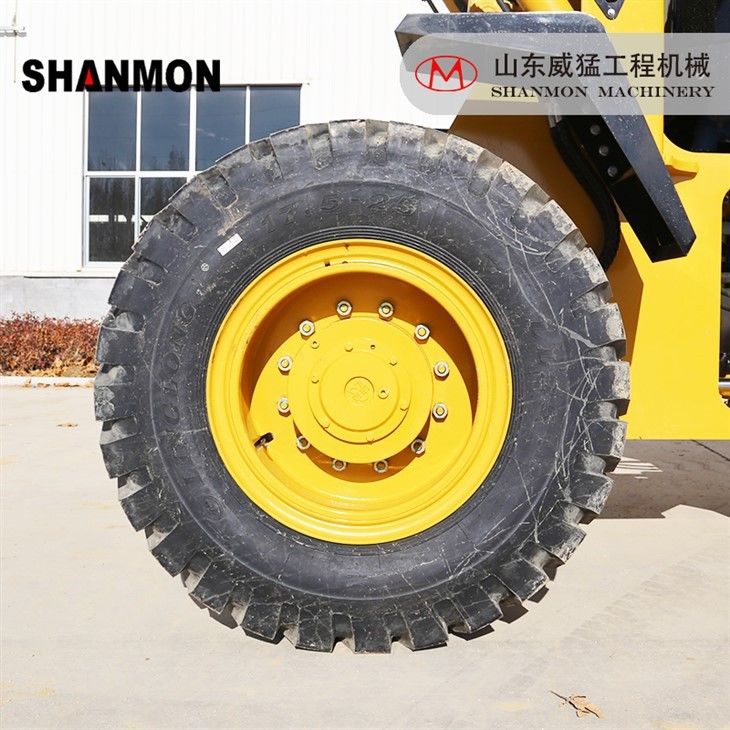

| Tire |
Tire specification |
17.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
