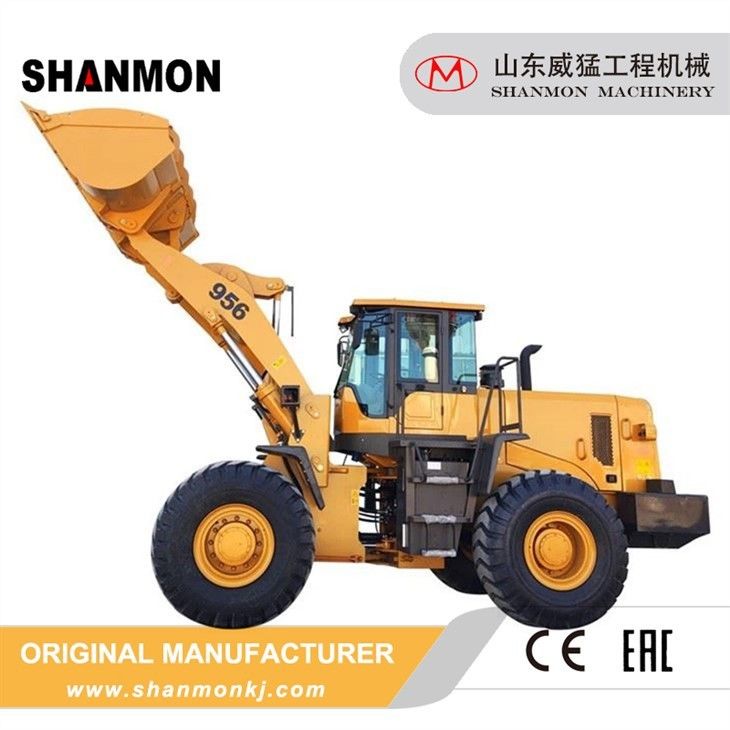

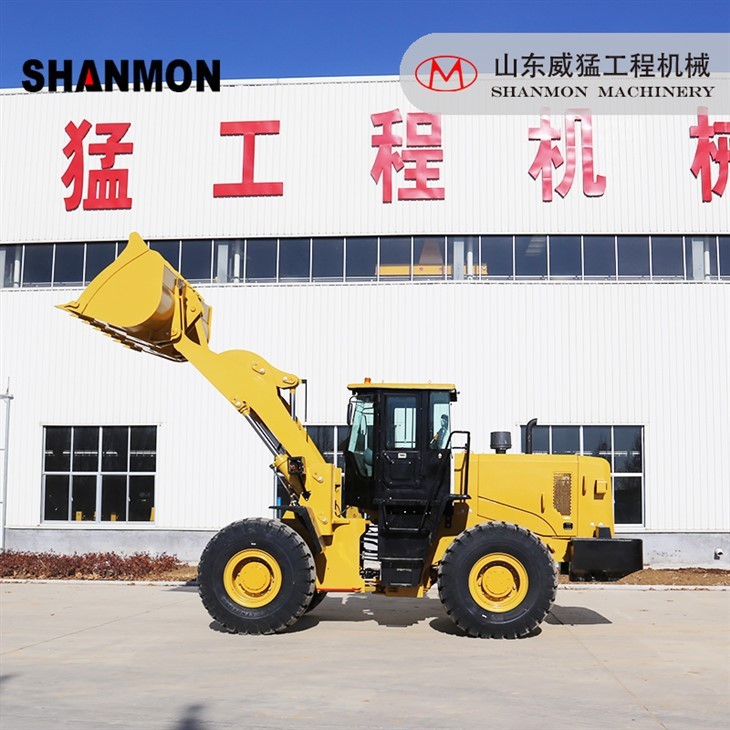

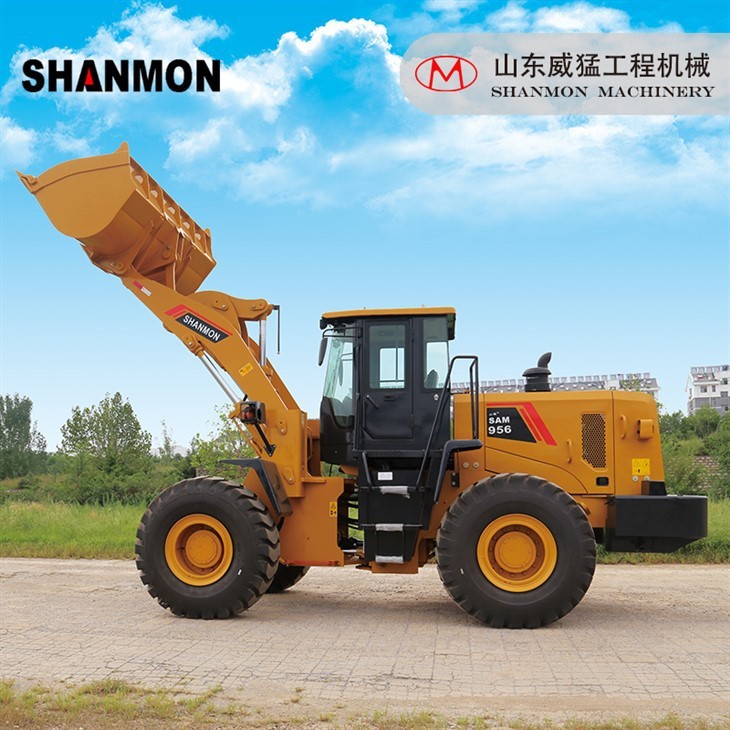

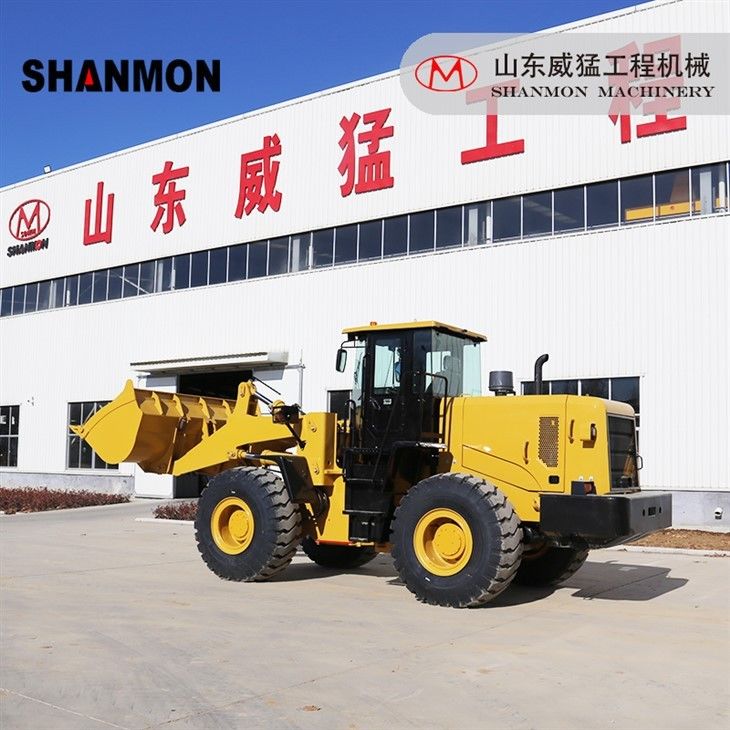

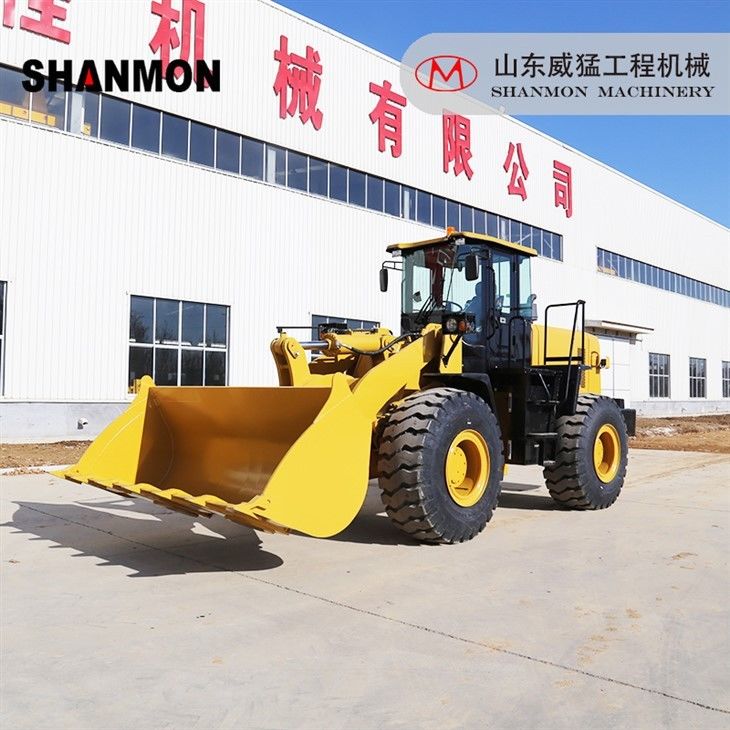

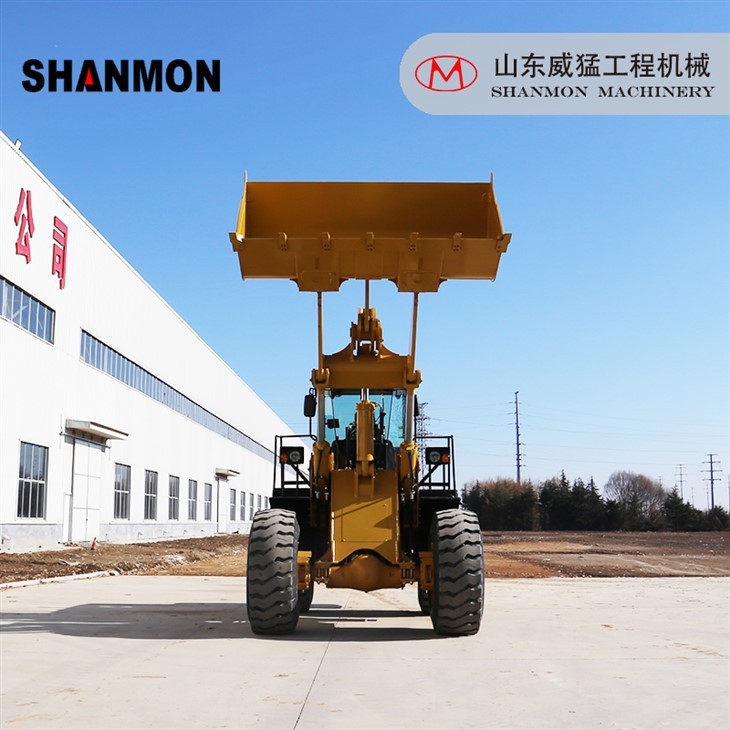

5ton wheel loader is compromised of a front-mounted bucket,a cabin and 4 wheels.It is available in a wide range sizes and capacities,and are among the most common and versatile machines found on construction,mining,agriculture and so on.The 5 ton wheel loader can also be equipped with wood grapple.If the wheel loader is equipped with wood grapple,it can be used in the forestry to grab trees or other materials such as grass.And the wood grapple is made of manganese steel which makes the attachment stronger.The cabin is equipped with air conditioner so the operators can feel comfortable even when they operate in tropical areas.Here is the specification:
| Performance | Loader lifting capacity | 5000KG |
| Operating weight | 16500KG | |
| Rated bucket capacity | 3m³ | |
| Max. tractive force | 167KN | |
| Max. breakout force | 177KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1250mm | |
| Overall dimension(L×W×H) | 8108×2950×3450mm | |
| Min. turning radius | 6640mm | |
| Engine |
Model |
Weichai WD10G220E23 |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 162KW | |
|
Maximum torque |
980N.m |
|
|
Min fuel-consumption ratio |
≤213g/kw.h |
|
Transmission system |
Torque converter | YJSW315 |
|
Gearbox mode |
planetary |
|
|
Gear shift |
2 forward shift and 1 reverse shift |
|
|
Maximum speed |
38km/h |
|
| Drive axles | Wheel base |
3250mm |
|
Wheel tread |
2250mm |
|
|
Ground clearance |
450mm |
|
| Hydraulic system | System working pressure | 18Mpa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 249L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire |
Tire specification |
23.5-25 |
|
Front tire pressure |
0.4Mpa |
|
|
Rear tire pressure |
0.35Mpa |
